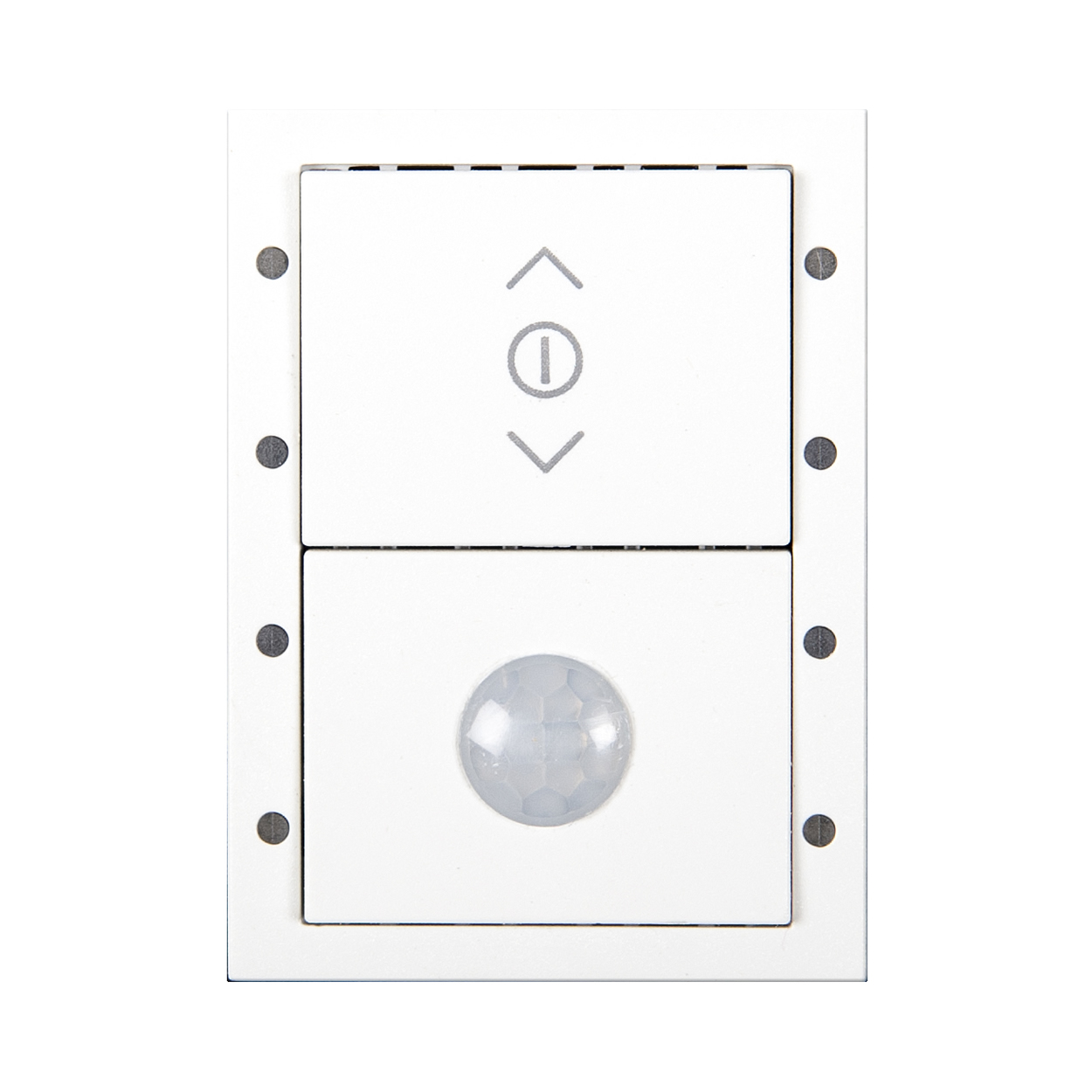

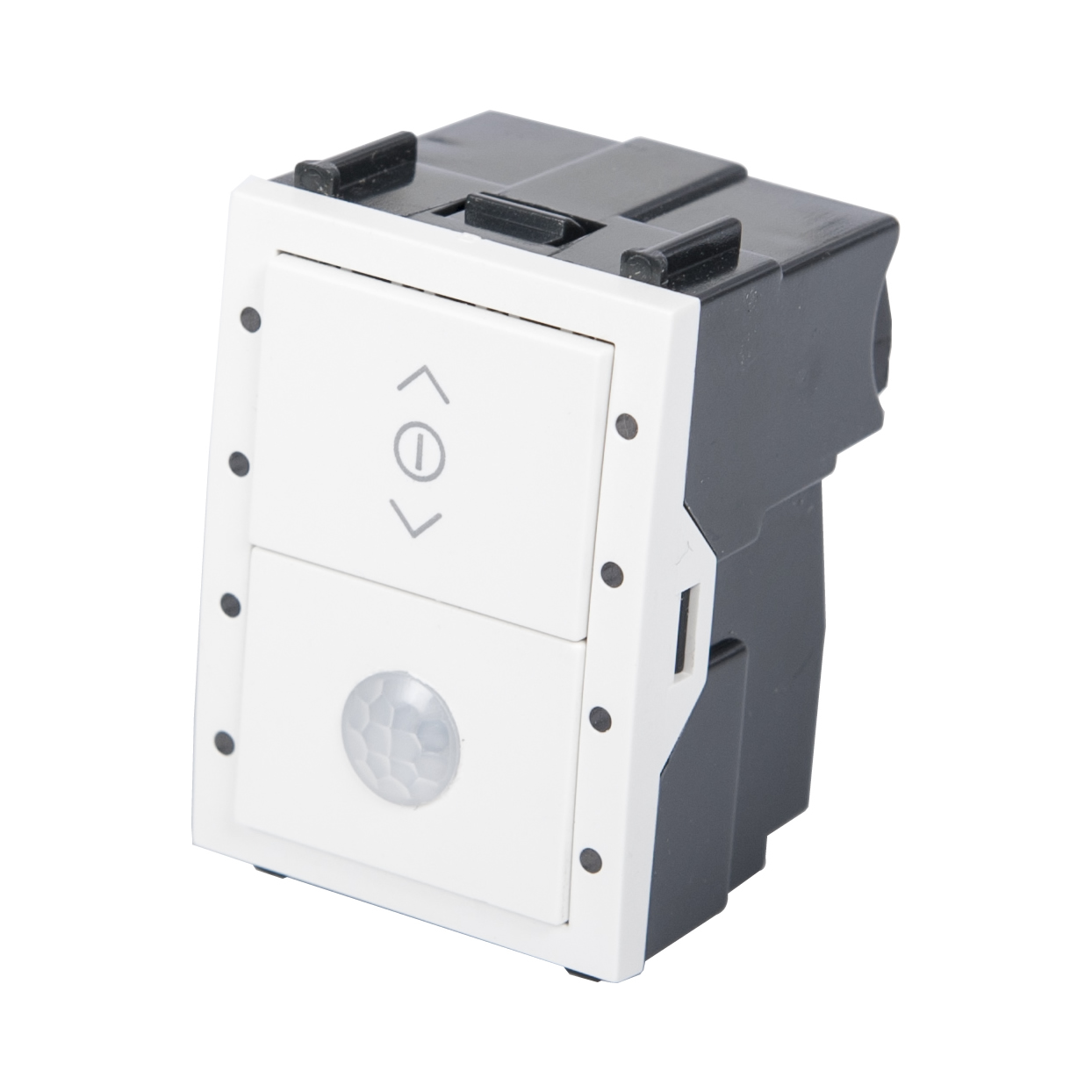

The 318 Wall-Mounted PIR Presence/Absence Detector, used in conjunction with a Helvar lighting control system, provides automatic control of lighting loads in individual room spaces.
Typically used in spaces such as cellular offices or small meeting rooms, the 318 is also suitable for other applications where a wall-mounted sensor is preferred, or where the use of traditional ceiling mounted sensors is not possible.
- Controls lighting loads based on presence/absence detection
- Manual Override/Dimming button built in
- For wall mounting using Helvar panel surrounds
- Available in black or white fi nish to match the Helvar button panel range
- Simple connection and integration into a Helvar DALI control network
- Fully configurable in Designer™ and Toolbox™ software
|Dimensions||35.4 × 31.8 × 48.4 mm|
