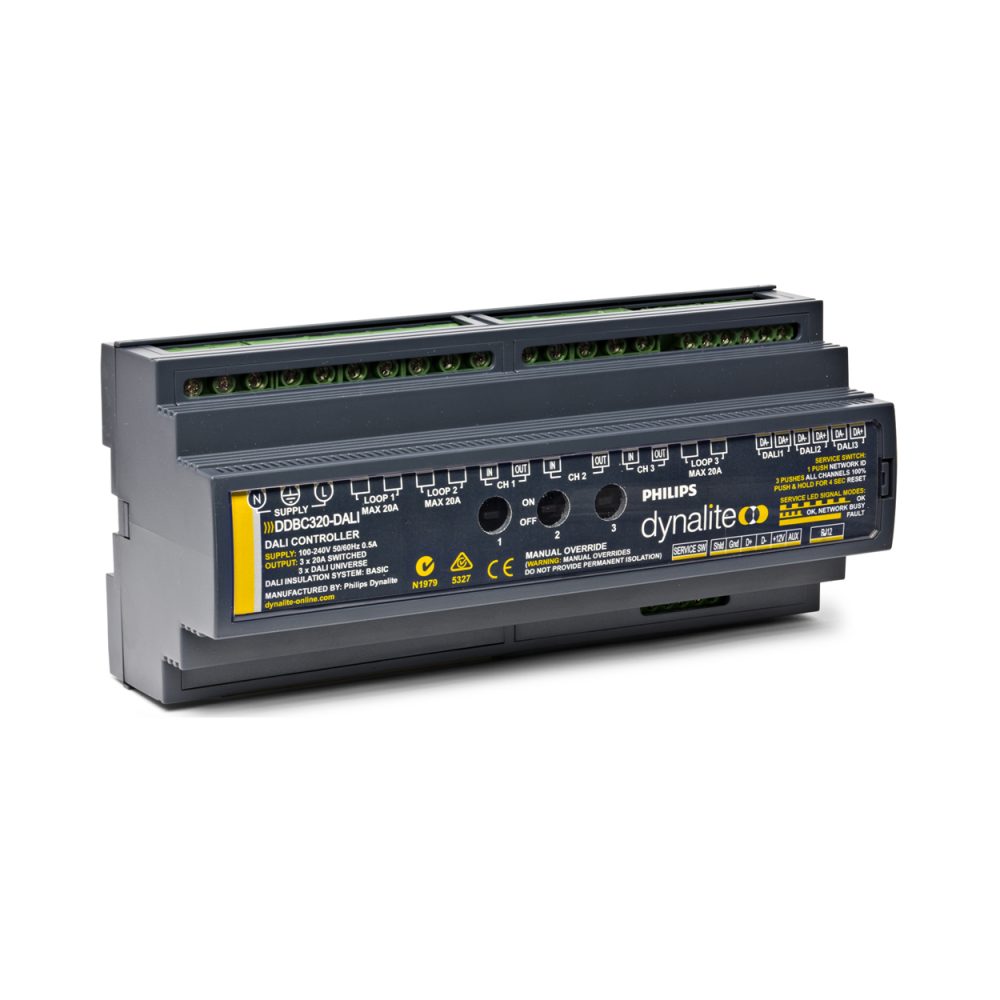

Philips Dynalite DALI Driver Controller 20A feed-through (DDBC320-DALI)

Philips Dynalite DALI Driver Controller 20A feed-through (DDBC320-DALI)

The DDBC320-DALI is designed to provide cost-effective control of DALI high frequency fluorescent ballasts. It has three DALI outputs, allowing it to control up to 192 DALI devices. The DALI control signals can be programmed to operate in tandem with the three internal switched outputs, which will automatically isolate the power circuit when all associated DALI channels are at 0%. This feature is useful for energy savings applications, as DALI ballasts draw a significant amount of power when the lamps are turned off via a DALI command. Direct DALI to DyNet mapping means that the DALI imposed limits, such as the maximum of 16 groups, are seamlessly overcome. The device is DIN-rail mountable, designed to be installed in a switchboard next to the circuit breakers supplying power to the controlled lighting circuits. The DDBC320-DALI contains an integral DALI bus power supply, removing the need for an additional external device.

Additional information

Dimensions 211 × 94 × 75 mm
Manufacturer

Philips Dynalite

Documentation

Reviews

There are no reviews yet.

Be the first to review “Philips Dynalite DALI Driver Controller 20A feed-through (DDBC320-DALI)”

Your email address will not be published.

SKU: DDBC320-DALI Category: Tag:
