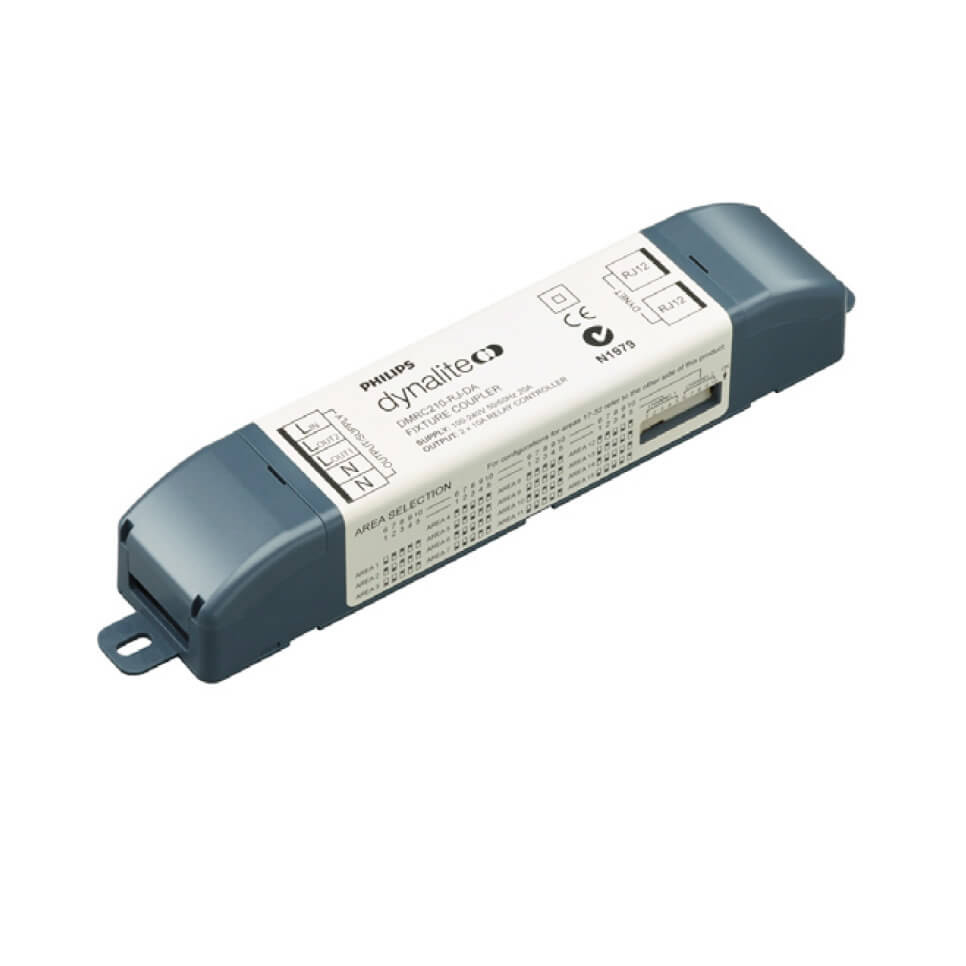

Philips Dynalite EcoSet Relay Controller (DMRC210DA-RJ12)

Philips Dynalite EcoSet Relay Controller (DMRC210DA-RJ12)
Free
  • DMRC210DA-RJ12

The Philips Dynalite DMRC210DA-RJ12 relay controller is part of the EcoSystem and is designed to allow intelligent, sub-networked control of luminaires, when used in combination with the DUS360CR-DA occupancy sensor.

  • Incorporates two relay outputs – Two independently controlled relay outputs designated for switching lighting loads.
  • Gear enclosure mounting – Compact design allows the device to be mounted directly within the gear enclosure of many light fittings.
  • Fully rated device – Suitable for large in-rush lighting loads.
  • Dipswitch configuration – Allows rapid set area configuration and provides out-of-the-box functionality without the need for a PC and software on-site.
  • Standalone or networked operation – The device can be connected to a fully networked Philips Dynalite system when extra functionality is required.
  • Inbuilt diagnostic functionality – Features Device Online/Offline status indication.

Additional Information

Dimensions240 × 45 × 38 mm
Manufacturer

Philips Dynalite

Channels

2
