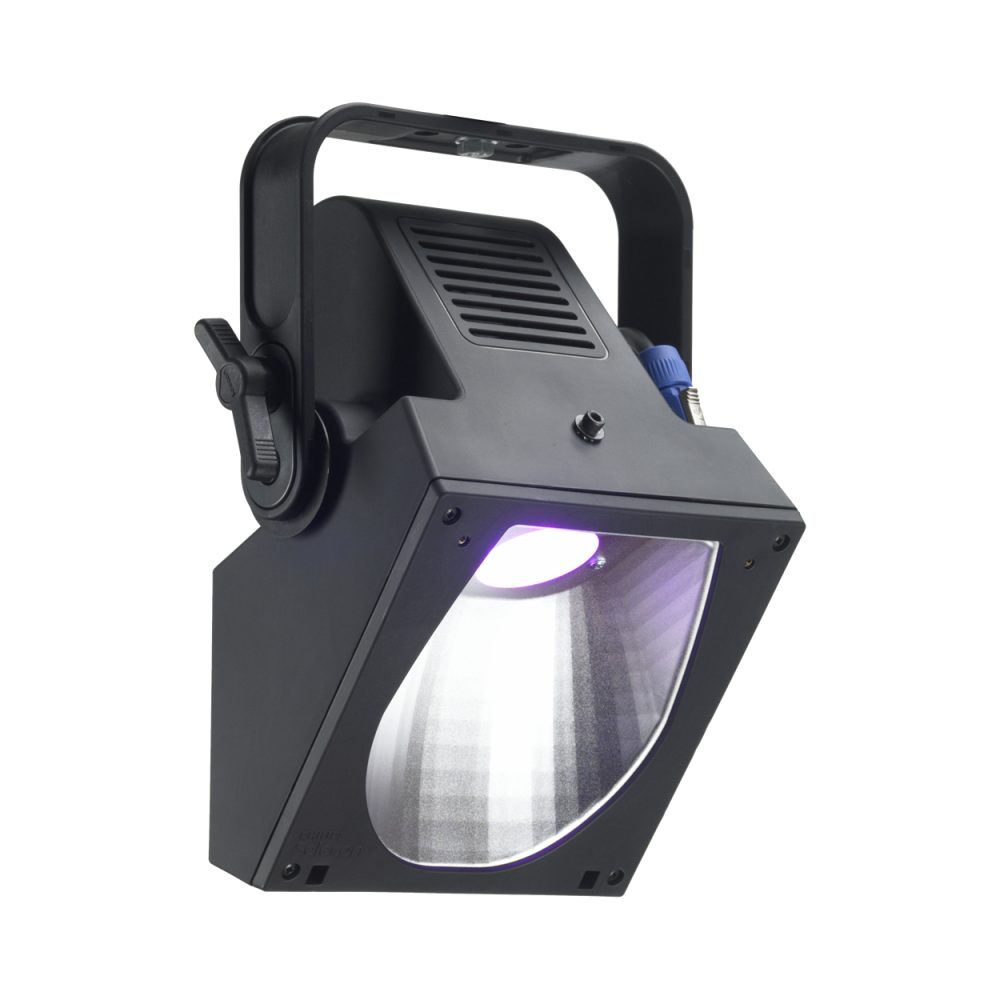

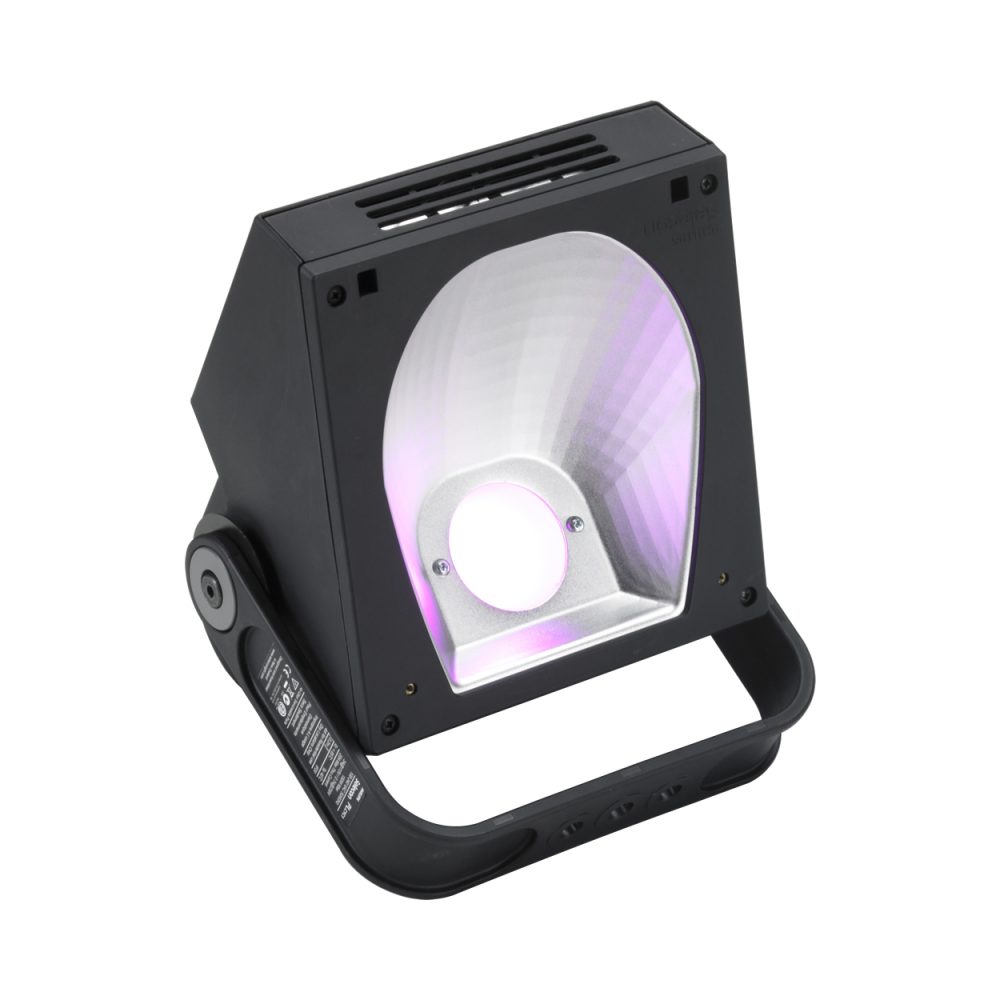

Delivering a smooth even beam, the PLCYC1 seamlessly blends intense washes of colour on cycloramas up to 5m high. Using LED source technology combined with a properly shaped asymmetrical reflector, the PLCYC1 delivers consistent light distribution without the compromising performance of vertical or horizontal spreader lenses.
Each luminaire can replace the equivalent of a traditional four colour 1000W per circuit Cyc luminaire, and with the convenient powercon system, the PLCYC1 can light a typical cyclorama with a single 10A non-dim circuit.

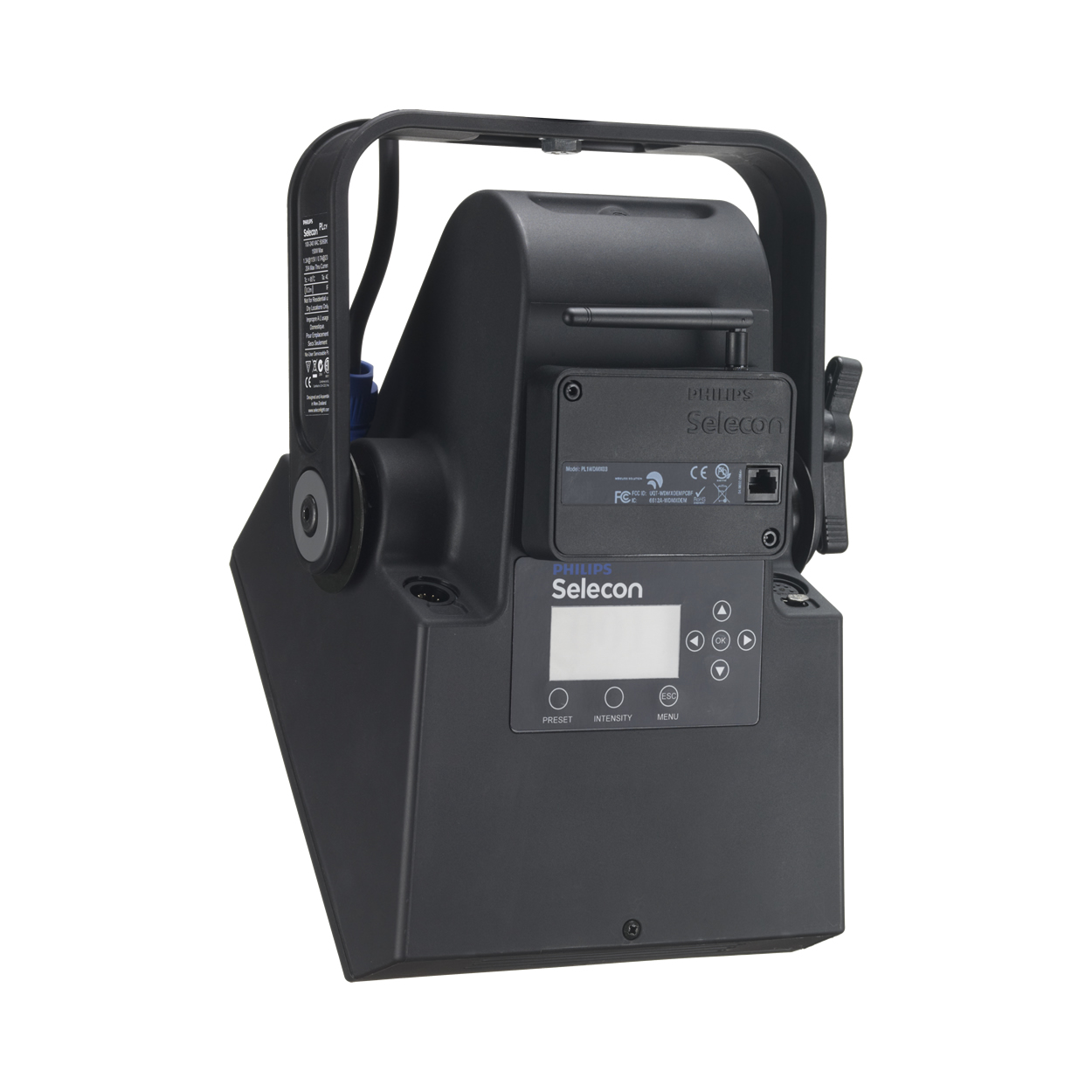

The PLCYC1 LED luminaire has an on-board LCD menu system for setup, control, and addressing. The menu system is intuitive and offers all configuration options with a few button presses.
Having trouble getting data to your light on set? All PLCYC1 luminaires support wireless DMX512 control for instant connections without running control wiring. Each optional wireless receiver also has a DMX512 out port to control adjacent luminaires. Receivers and transmitters are available from Wireless Solution, City Theatrical and Lumenradio.
All PLCYC1 luminaires support wired and wireless DMX512 control with a choice of 8- or 16-bit control resolution. With the increased development of LED luminaires like PL1 and PLCYC1 with 4 or more colours, additional control is needed for intuitive operation.
