Clay Paky Sharpy X Frame

Clay Paky Sharpy X Frame

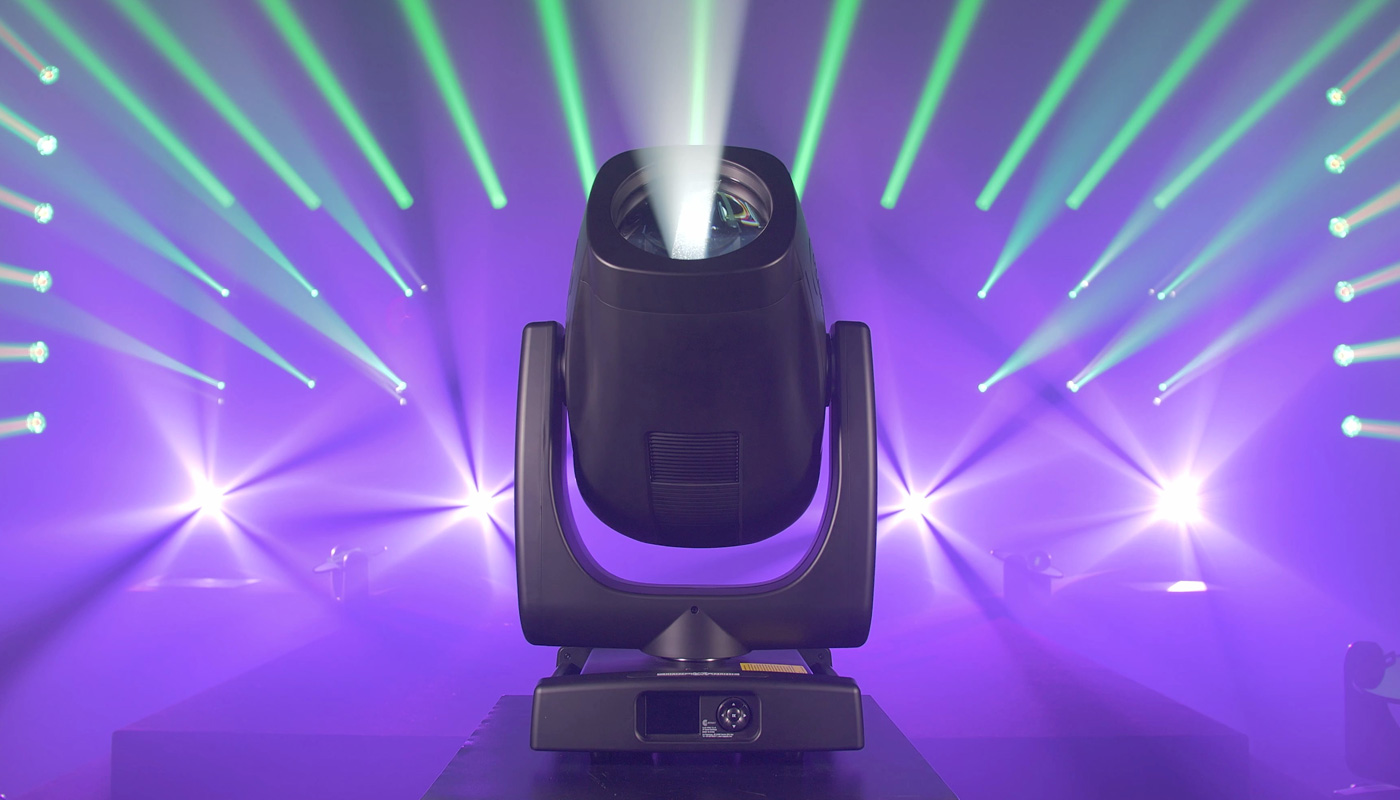

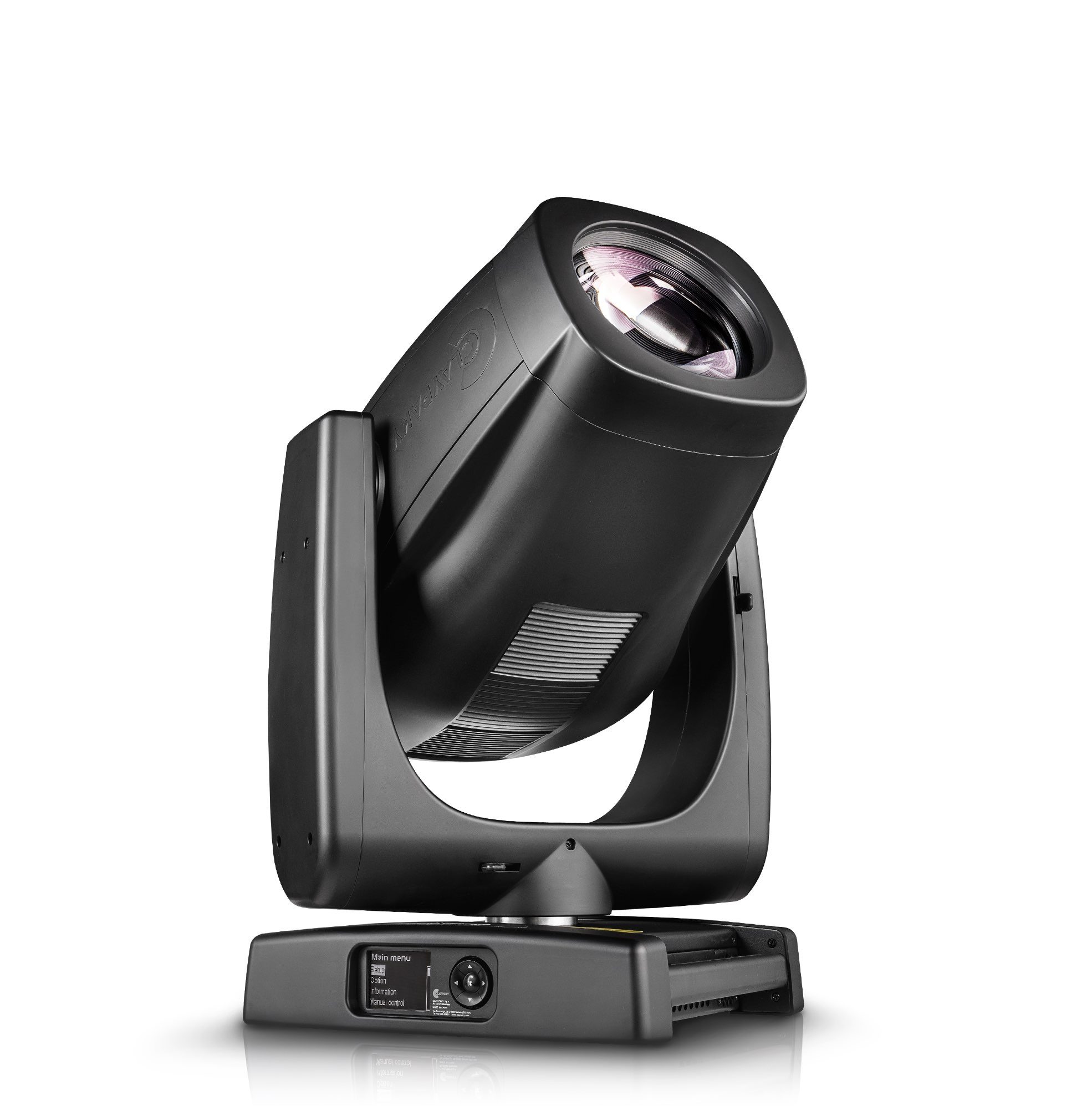

The Clay Paky Sharpy X Frame is a multifunction luminaire which takes the best features of the Sharpy line and integrates a four-focal plane shutter system in a lightweight, compact fixture. Powered by a 550W arc lamp, the fixture is extremely bright and produces deep uniform colours. The Sharpy X Frame offers a rotating gobo wheel with eight gobos, a static gobo wheel, four and eight-facet rotating prisms, linear frost, a colour system featuring CMY, CTO and a separated colour wheel, and six beam reducers starting at 0.5°. With a 160mm front lens, proven Clay Paky optics and a zoom range from 3° to 52° (spot mode) and 2° to 29° (beam mode), the Sharpy X Frame can do unparalleled visual effects.

Key features

  • Light source: 550W arc lamp
  • CRI: 80+ and up to 90 by mixing the CMY wheels
  • Output: 18,800 lm
  • 160-millimeter diameter front lens
  • 3°-52° (spot mode) and 2°-29° (beam mode) linear motorized zoom
  • Linear CMY colour mixing & CTO
  • 14-color wheel on separate channel
  • Rotating gobo wheel with 8 interchangeable glass gobos
  • Static gobo wheel with 18 static gobos
  • Six beam reducers (down to 0.5°)
  • Animation wheel
  • Rotating 4-facet & 8-facet prism on dedicated channel
  • Motorized iris
  • Framing system: 4 focal planes, +/-60° rotation and macro channel control
