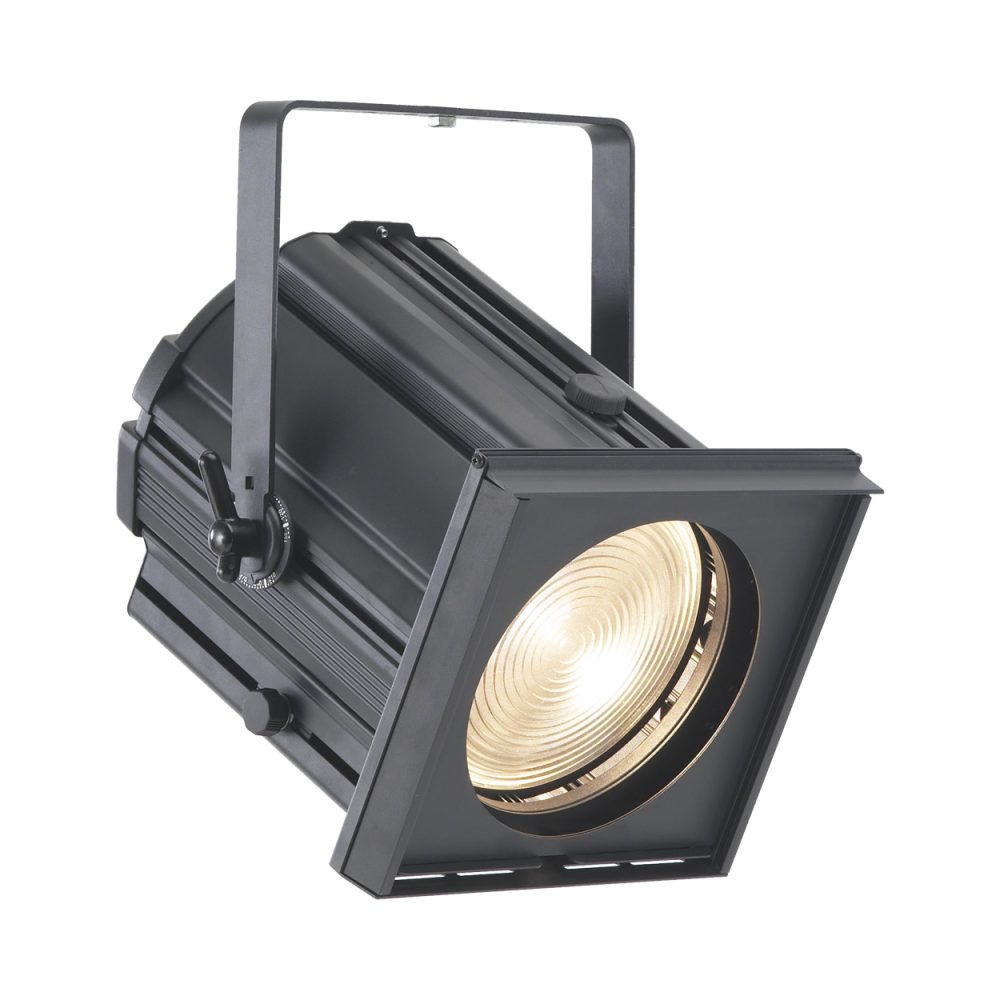

Philips Selecon Arena High Performance Fresnel

Philips Selecon Arena High Performance Fresnel

The Arena High Performance Fresnel uses Selecon’s 250mm / 10-inch lens which provides unmatched output and beam control for long throw applications.

The beam quality is excellent with a well-controlled flat even field with a distinct “crisp white” tint. Useful throw distance range of 6-25m / 20-82ft.

  • Leading performance for a theatre Fresnel due to 250mm diameter lens.
  • Wide range of beam angles: 9° – 56°.
  • Integrated safety bond rated for the luminaire.
  • Flat even beam with very little spill allows clean masking with barndoor flaps.
  • Adjustable yoke balance point.
  • Swing-down door for easy access to lamp or lens.
  • “Cool Touch Technology” – rear mouldings and large rear grab handle.
  • Your choice of GY16 lamp socket for CP72, 2.0kW lamp or G22 lamp socket for CP91 2.5kW or CP92 2.0kW lamp.
  • ‘Posi-slide’ focus system with no metal to metal contact provides smooth focus movement.
  • Effective airflow maintains lower body temperature.
  • Constructed of pressure die-castings and aluminium extrusion.

Additional information

Weight 8.7 kg
Dimensions 464 × 357 × 448 mm
Manufacturer

Philips Selecon
