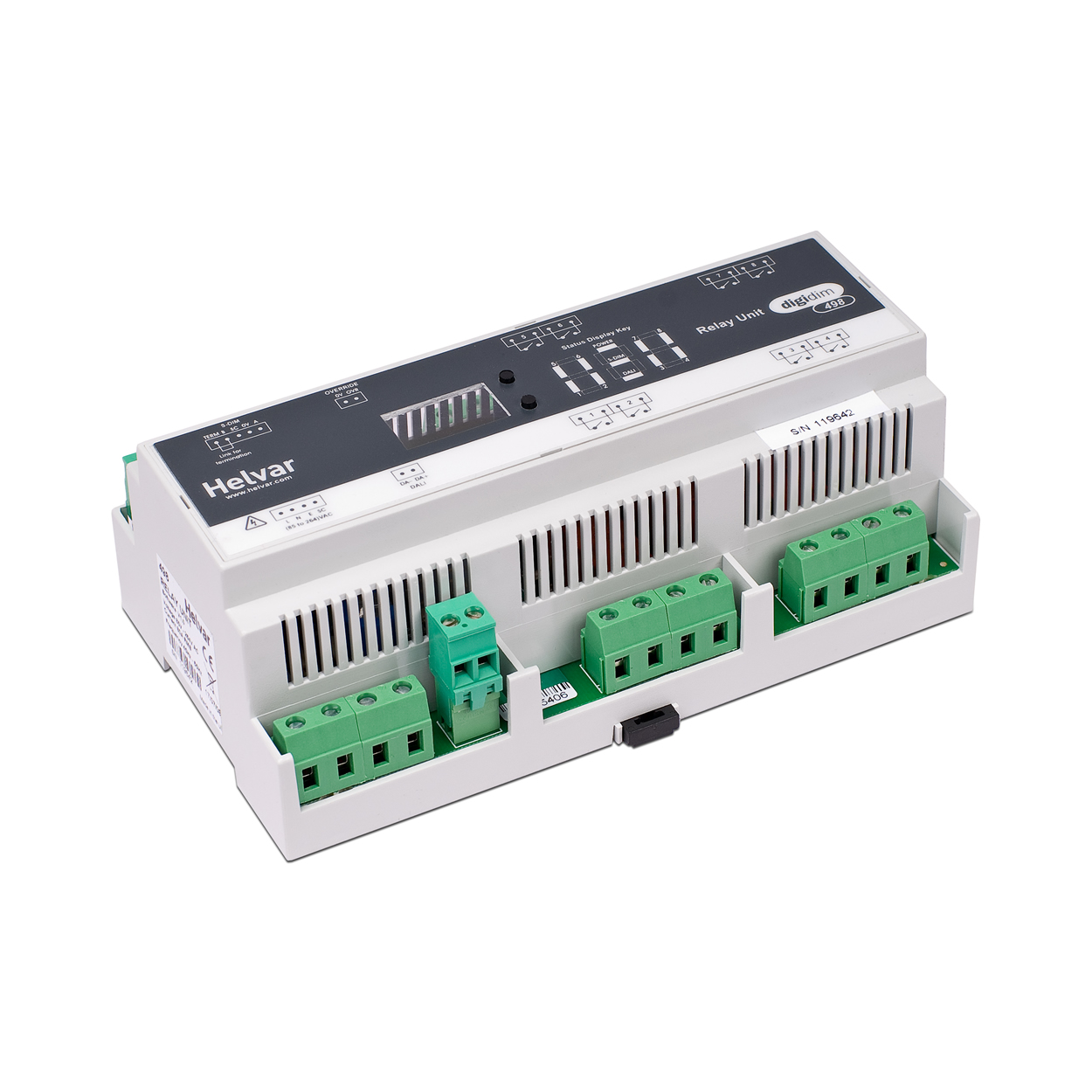

Helvar Relay Unit 8Ch (498)

Helvar Relay Unit 8Ch (498)
Free
  • Helvar Relay Unit 8Ch (498)
  • Helvar Relay Unit 8Ch (498)
  • Helvar Relay Unit 8Ch (498)

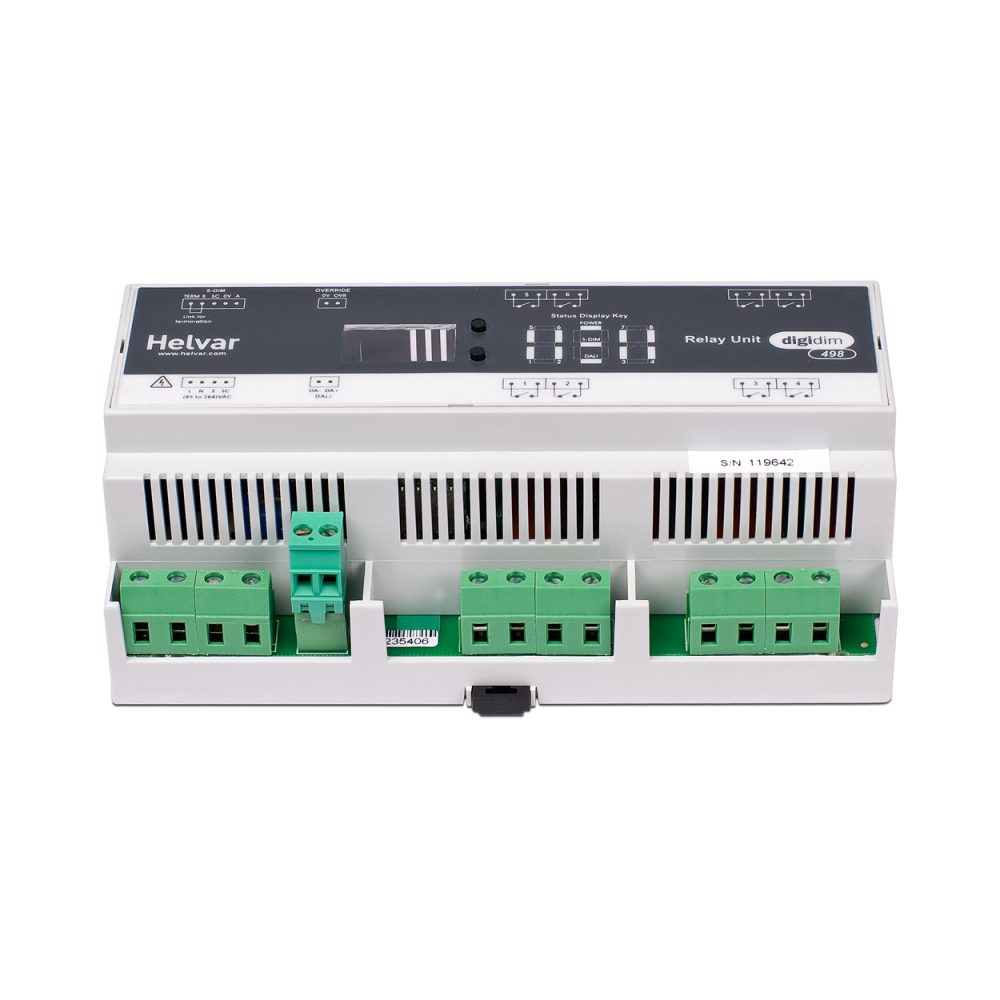

The DIGIDIM 498 8-Channel Relay Unit is fitted with high in-rush specification relays rated at 16 A per channel, which handle short-lived high peak in-rush currents during switch-on of loads.

It can be networked through either DALI or SDIM communication to be incorporated into a DIGIDIM or Imagine lighting control system.

The unit has an intuitive LED segment display and push buttons for monitoring, manual configuration and control purposes.

  • Fitted with individually programmable high-inrush relays to allow control of non-dimmable loads
  • DIN-rail mounted
  • ‘Normally open’ and volt-free relays rated at 10 A per channel
  • LED display and control buttons
  • Override input for external triggers
  • DALI and S-DIM connections allowing  use with DIGIDIM and Imagine systems

Additional Information

Weight0.4 kg
Dimensions158 x 90 x 58 mm
Manufacturer

Helvar

Channels

8
