Prolights EclPanel TWCMini2x1

Prolights EclPanel TWCMini2x1

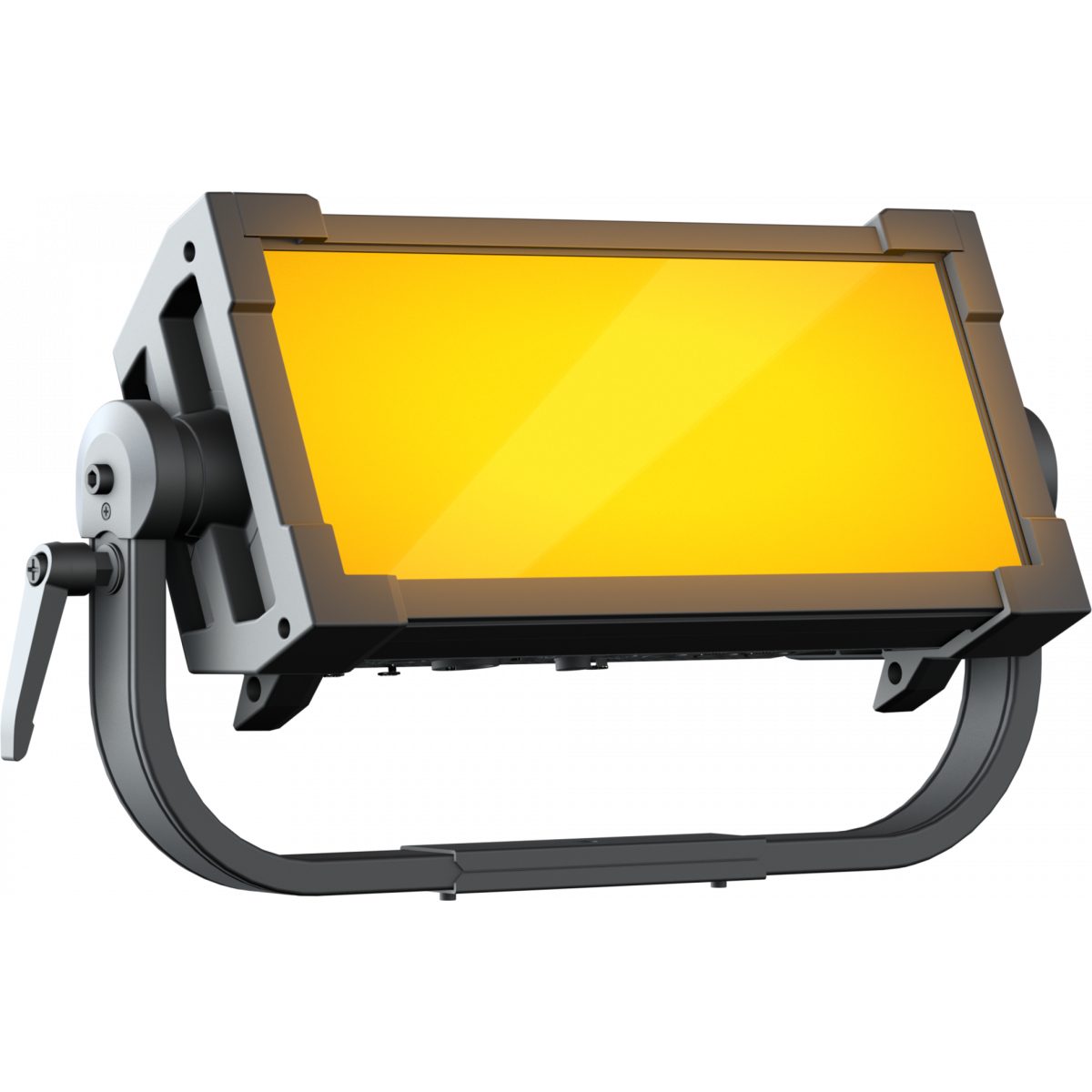

The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.

The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.

Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).

Main features:

  • 115W RGB + Warm White LED source
  • CRI > 94; R9 > 88.8; TLCI > 92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)
