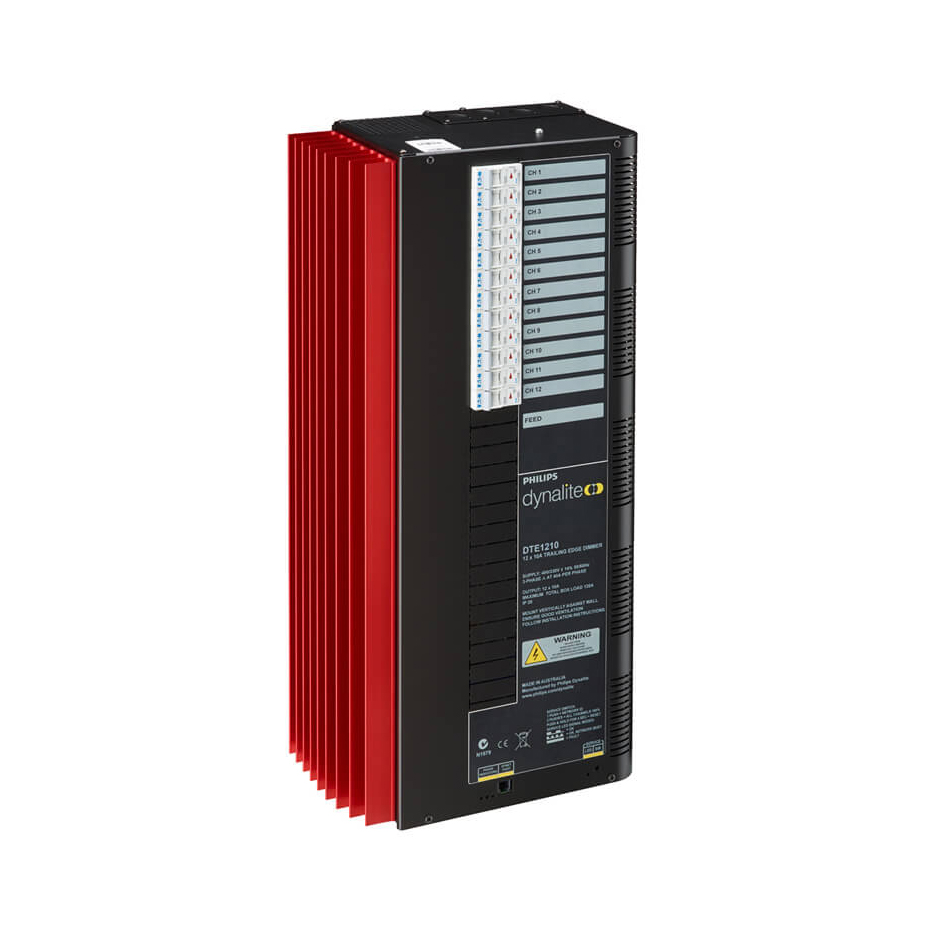

Philips Dynalite Trailing Edge Dimmer Controller 12Ch (DTE1210)

Philips Dynalite Trailing Edge Dimmer Controller 12Ch (DTE1210)

The DTE1210 is a 12-channel energy management controller with a maximum load per channel of 10A. It has a trailing edge output, making it suitable for use with most types of dimmable electronic transformers. The DTE1210 can operate from a three phase or single phase supply, and is especially suited for controlling track mounted fixtures on a three circuit track. Using a three phase supply when the DTE1210 is connected to a three circuit track allows the track to be loaded to it’s maximum rating. Philips Dynalite’s superior voltage regulation and soft start technologies protect lamps, dramatically extending their life. The power circuit for each channel is contained within plug in modules for ease of maintenance. The device incorporates a Programmable Logic Controller that can process complex conditional and sequential logic and macro functions. It is DMX512 compatible, making it perfect for use in theaters and auditoriums.

Additional information

Dimensions 600 × 286 × 202 mm
Manufacturer

Philips Dynalite

Channels

12
