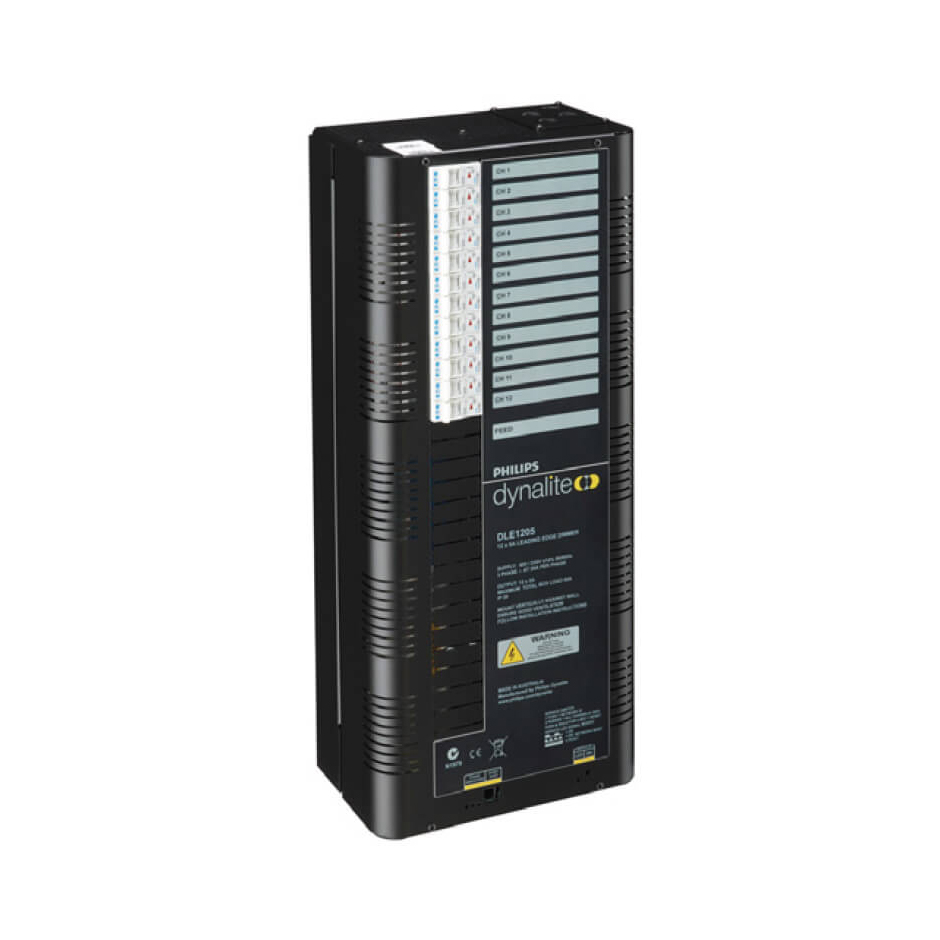

Philips Dynalite Leading Edge Dimmer Controller 12Ch/5A (DLE1205)

Philips Dynalite Leading Edge Dimmer Controller 12Ch/5A (DLE1205)

This product has been discontinued. Reach out to our friendly team to discuss great alternatives to this item.


The Philips Dynalite DLE1205 is a 12 channel leading edge dimmer controller with a maximum load per channel of 5 A. It is suitable for use with incandescent and neon light sources, as well as iron core and leading edge electronic transformers.

  • Fully rated device – The combination of load capacity and sub-circuit protection delivers a superior solution for small scale commercial applications.
  • Interference suppression – Iron powder core toroidal choke lessens effects of interference from other equipment, such as transformers.
  • Naturally ventilated – Requires no forced cooling or maintenance.
  • Soft start and voltage regulation technologies – Protects lamps from over voltage and dramatically improves lamp life, reducing maintenance costs.
  • Diagnostic functionality – Device Online/Offline status reporting.
  • User controls – Incorporates service override switch and three phase indicator LED. Hardware bypass switches are provided for each channel.
  • Options available – Including circuit breaker trip reporting, earth leakage and overload protection on each channel, provision of two or three pole circuit breakers, or neutral disconnect circuit breakers.

Additional information

Dimensions 620 × 255 × 176 mm

Philips Dynalite




There are no reviews yet.

Be the first to review “Philips Dynalite Leading Edge Dimmer Controller 12Ch/5A (DLE1205)”

Your email address will not be published. Required fields are marked *

SKU: DLE1205 Category: Tags: ,
