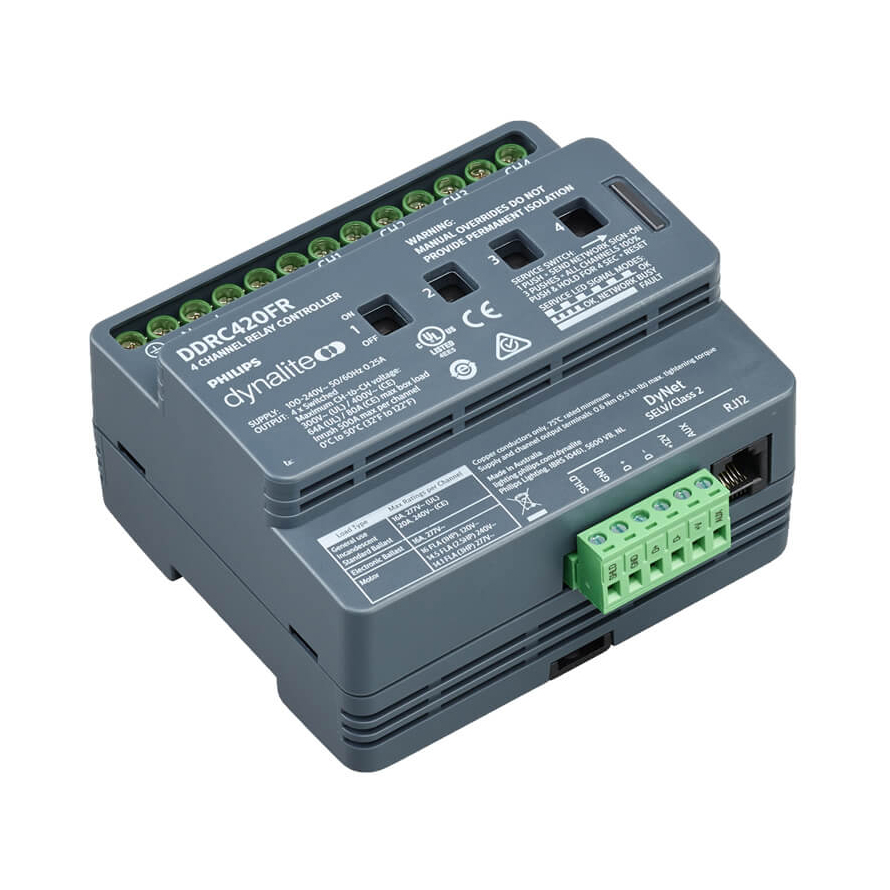

Philips Dynalite Relay Controller 4 Ch (DDRC420FR)

Philips Dynalite Relay Controller 4 Ch (DDRC420FR)
Free
  • DDRC420FR

The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.

  • Feed-through power circuit design – Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
  • Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
  • Inbuilt diagnostic functionality – Features circuit run time tracking on each channel and Device Online/Offline status indication.
  • Multiple wiring schemes supported – Controls single phase and neutral or three phase and neutral (star) wiring configurations.
  • Hardware override – Service override switch accessible from front panel.

Additional Information

Dimensions 105 × 95 × 75 mm
Manufacturer

Philips Dynalite

Channels

4
