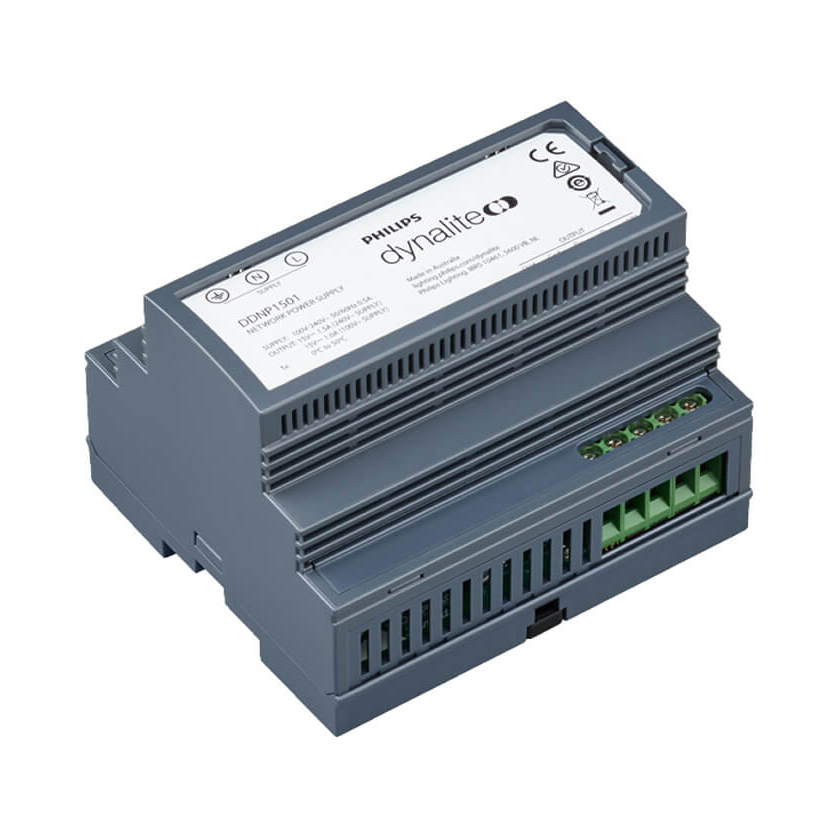

The DDNP1501 is a 15V DC 1.5 Amps regulated power supply, designed to supplement the DyNet network DC supply. The switchmode design allows the device to be used with a wide range of supply voltages without the need for a manual selector setting. Normally a DyNet network is self-powered by the built-in DC supplies integrated within all mains powered devices. However, in certain applications this supply may need to be supplemented with the DDNP1501 when using peripherals with a high supply requirement, such as edge lit touch screens. The DDNP1501 is housed in a six-unit DIN-rail mount enclosure that has a circuit breaker profile. This enables the device to be installed in all types of electrical equipment enclosures, including those with cover apertures specifically designed for circuit breakers.
|Dimensions||105 × 95 × 75 mm|
