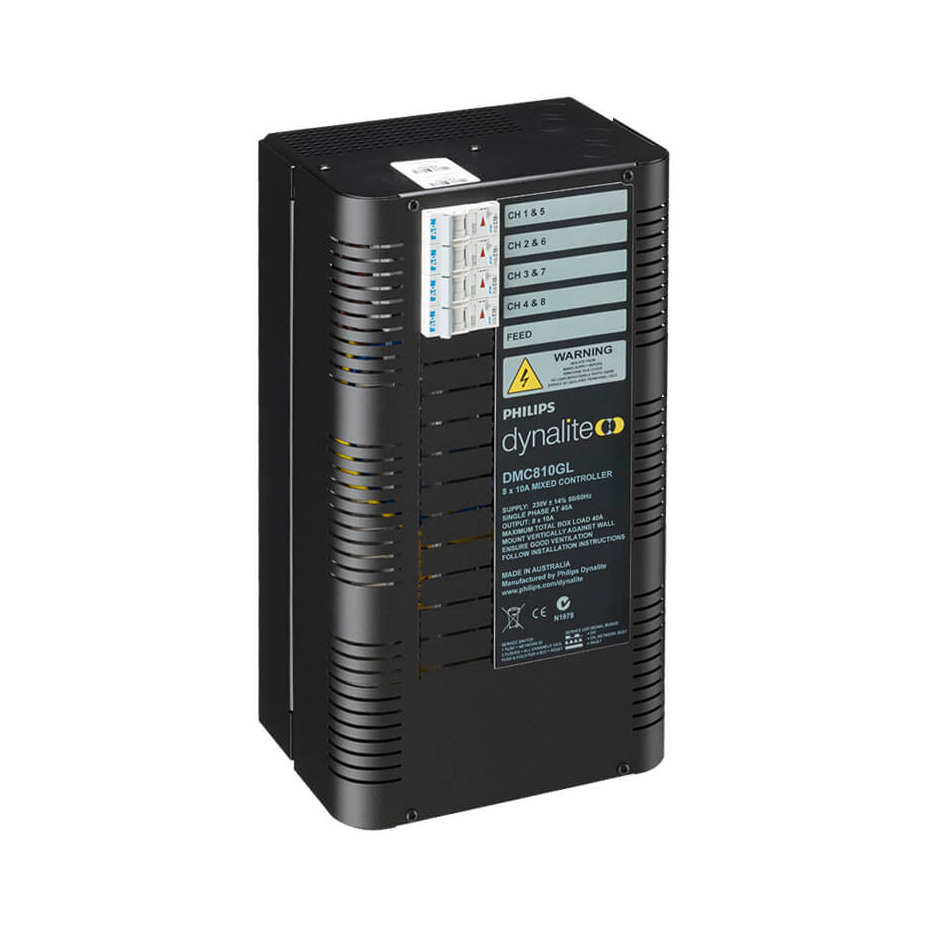

The DMC810GL multipurpose controller offers control of both incandescent lamps and electronic dimmable and switched ballasts and transformers. Four 10A circuit breakers protect eight channels rated at 10A each for control of dimmable loads. Four control outputs, selectable to 1-10V DC, DSI and DALI broadcast, are provided for control of HF ballasts. These control outputs can operate in tandem with or separately from, the switched outputs. The ability to control mixed load types from the one controller provides savings on initial capital costs, as well as installation.
|Dimensions||366 × 212 × 179 mm|
