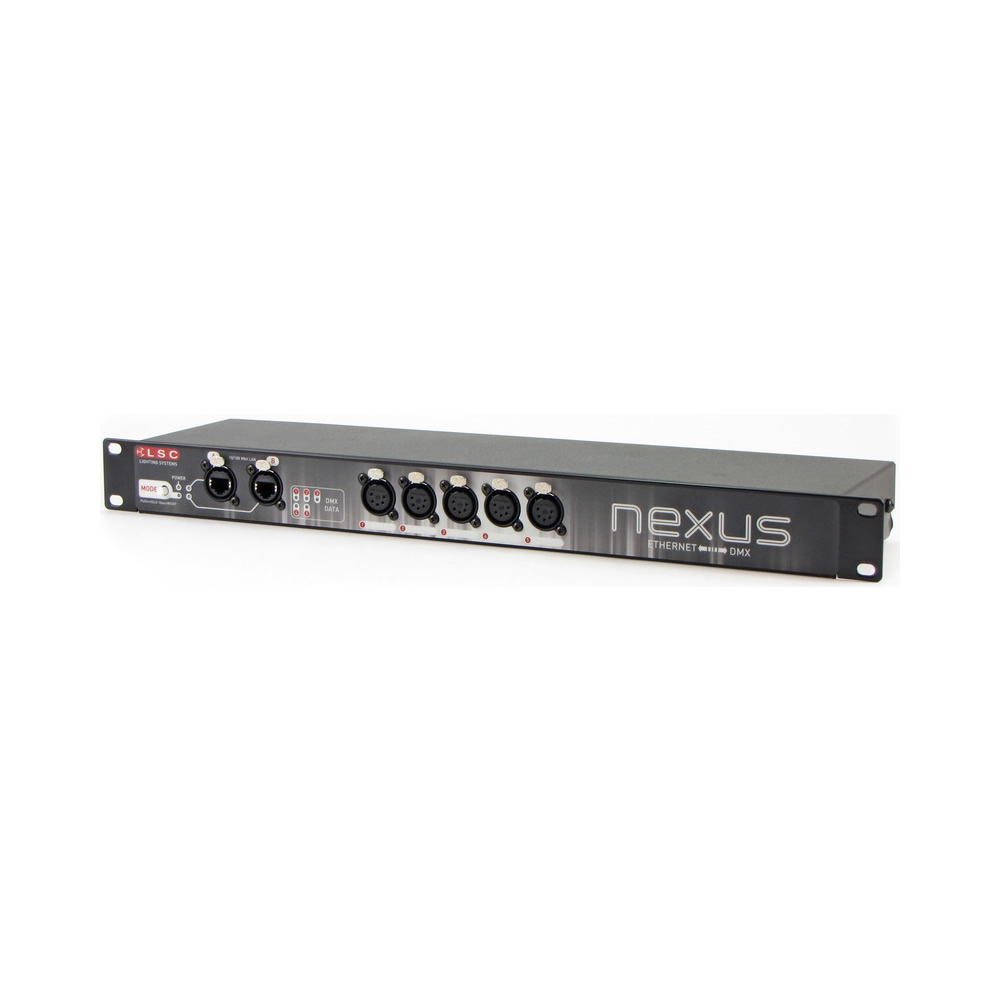

LSC Nexus NXSR Ethernet/DMX512 Converter

LSC Nexus NXSR Ethernet/DMX512 Converter

The NEXUS NXSR is the latest addition to LSC’s Data Distribution products and offers conversion between DMX512A and RDM signals to/from Ethernet and currently supports Art-Net, Shownet and Streaming ACN (sACN) ethernet protocols.

Much more than your standard converter, the NEXUS range of both 1 and 5 port interfaces allows the user many other options such as a protocol conversion tool for today’s demanding shows.

  • Two Ethernet Ports via Neutrik Ethercon connectors.
  • Second Ethernet port can be used as a hub or as a redundant feed.
  • Five data inputs / outputs suitable for DMX512A/RDM compatible protocols.
  • Supports Art-Net, Shownet and sACN protocols.
  • Output XLR connector options of 5 pin or 3pin.
  • Internal 85-265v AC 45-65Hz universal power supply with CE, Ctick and UL approval.
  • Fully opto/earth-isolated input & individually opto/earth isolated outputs.
  • LED indicators for DMX, Power, DMX Termination and DMX/RDM data activity.
  • Output circuits are EMI filtered and current limited to protect against short circuits.
  • Sturdy 19″ 1RU rack-mount folded metal case.

Additional information

Weight 1.5 kg
Dimensions 480 × 114 × 44 mm
