  • ISOPORT

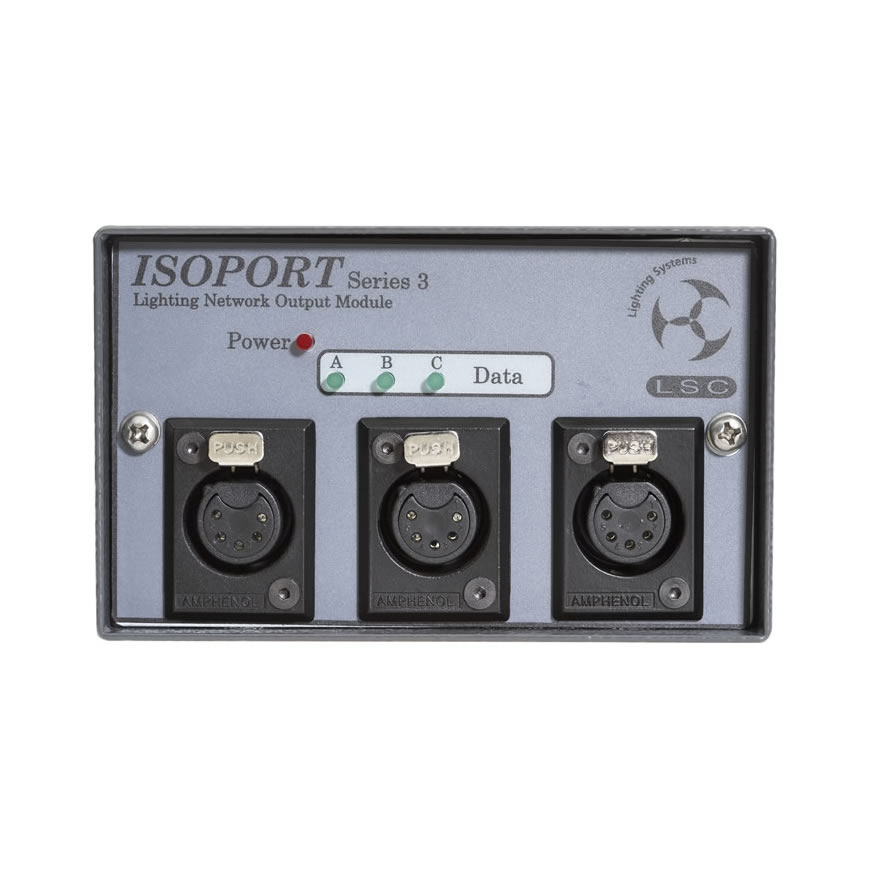

ISOPORTS are a wall mounted electrically isolated and buffered DMX512 outlet module. The ISOPORT is available in three models, providing up to 1536 channels of DMX512 control at any point.

Up to 32 ISOPORTs can be connected per DMX512 spur and an onboard terminator can be enabled for the last ISOPORT on each spur.

  • Available with 1, 2 or 3 DMX XLR output connectors.
  • Front panel power and data indicators.
  • Integrated output termination switch/s.
  • Internal screw terminal block for quick connection of DMX512 cable.
  • CE and Ctick approved.

Additional Information

Weight 0.7 kg
Dimensions 80 × 120 × 75 mm
Manufacturer

LSC
