Helvar Outdoor Constant Voltage LED Driver 30W (OL1x30-E-CV24)

Helvar Outdoor Constant Voltage LED Driver 30W (OL1x30-E-CV24)

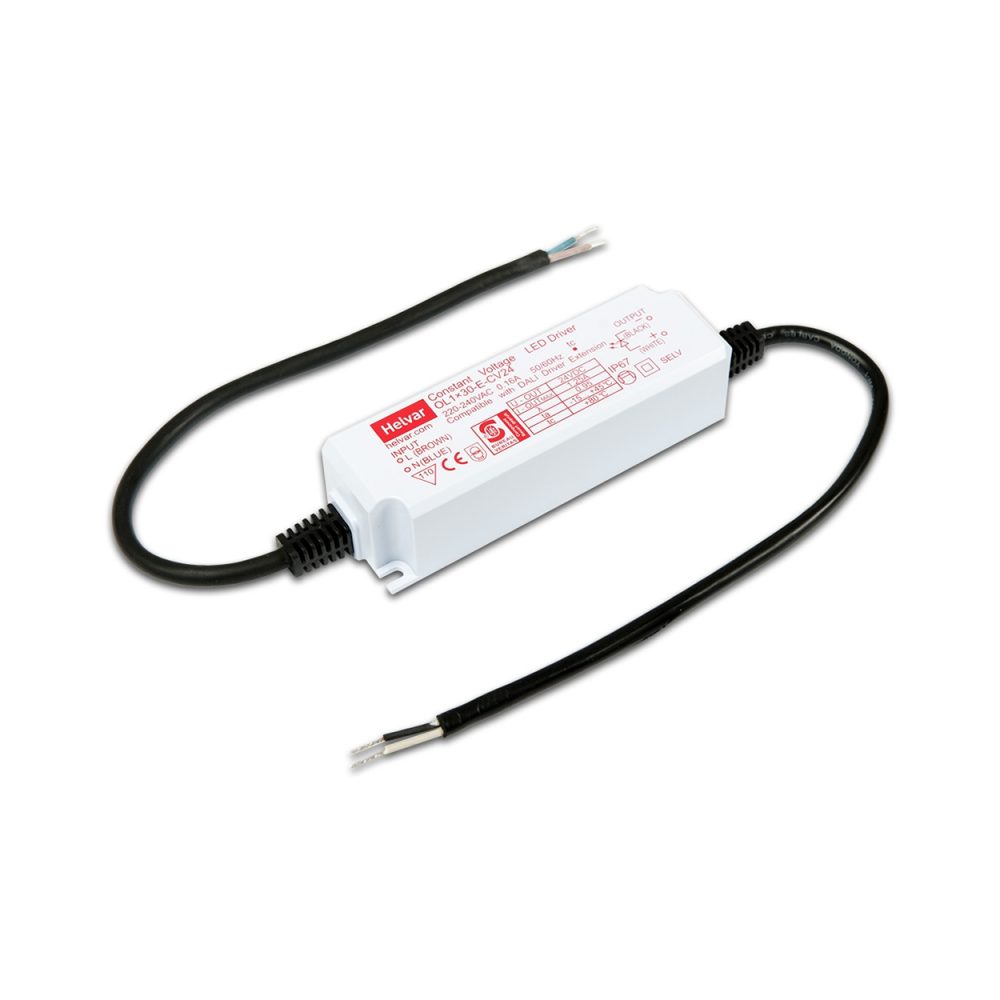

Helvar’s OL1x30-E-CV24 is a 30 W constant voltage outdoor LED driver with an IP67 rating.

  • Open & short circuit protection
  • Over voltage protection
  • 24 V Constant voltage output
  • Maximum 30 W load
  • High efficiency 0.88
  • Suitable for Class I, Class II and SELV luminaires
  • Suitable for outdoor use IP67
  • Double insulated enclosure
  • Compatible with LL1xCV-DA (for DALI dimmable installations)

Additional information

Weight 0.34 kg
Dimensions 131 × 42 × 34 mm
Output Voltage

24V

Max Output Power

30W

Manufacturer

Helvar

IP Rating

IP67

Documentation

SKU: OL1x30-E-CV24 Category: Tag:
