LEDrive 3/6 Desktop (Constant Current)

LEDrive 3/6 Desktop (Constant Current)

The LEDrive 3/6 Desktop LED Driver is a desktop controller for constant current LED’s.  Different models allow for different control options, either DMX/standalone or 1-10V control.  The LEDrive 3/6 Desktop LED Driver can be supplied with an external 12 – 48VDC power supply.

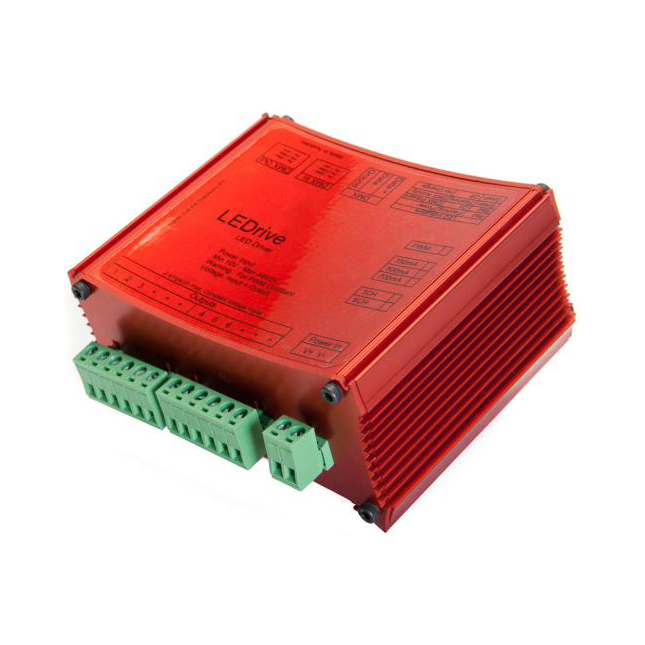

The DMX/Standalone driver is controlled via RDM, which allows you to choose from a variety of pre-programmed lighting scenes and static lighting states, as well as unit addressing for control from any RDM-compatible DMX lighting desk.

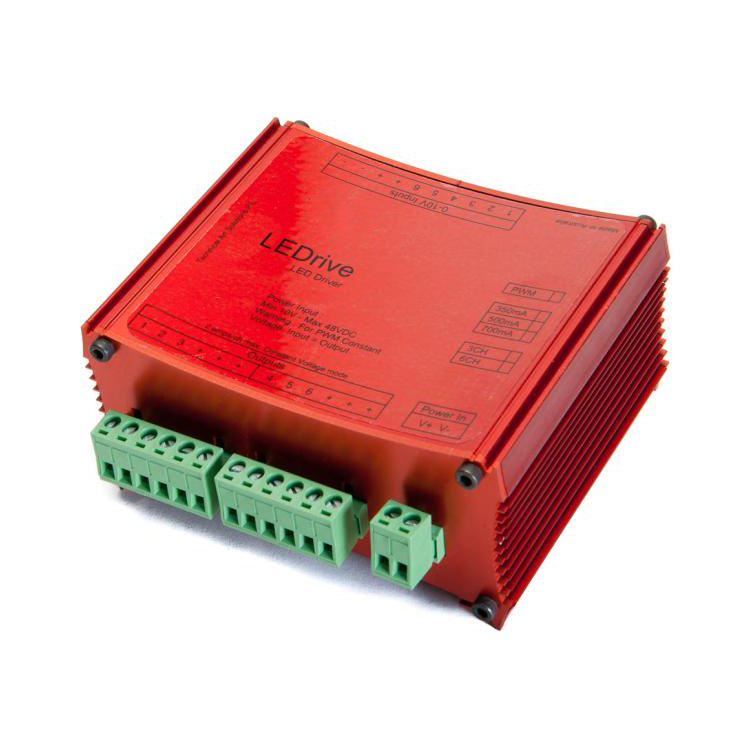

The 1-10V driver is for 350mA (1 Watt) or 700mA (3 watt) LED’s. This unit is controlled via analogue 0-10V allowing integration with analogue systems.

* RDM or Remote Device Management is a protocol enhancement to DMX512 that allows Bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.

Additional information

Dimensions 105 × 105 × 55 mm
Manufacturer

Lightmoves

Channels

3 (RGB)

Documentation

Category:
