Philips Dynalite Signal Dimmer Controller 12Ch/20A (DBC1220GL)

Philips Dynalite Signal Dimmer Controller 12Ch/20A (DBC1220GL)

This product has been discontinued. Reach out to our friendly team to discuss great alternatives to this item.

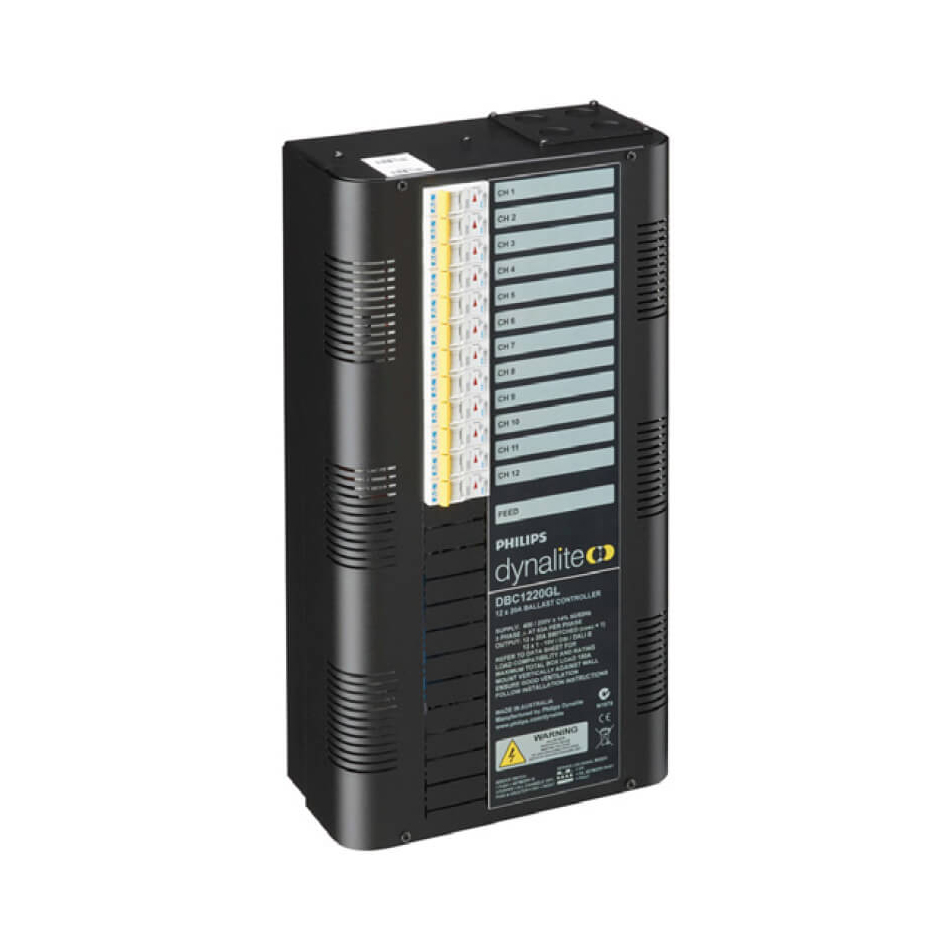

The Philips Dynalite DBC1220GL is a 12 channel signal dimmer controller, featuring a maximum of load of 20 A per channel and a total device load of 180 A. It is designed for use with DALI, 1-10V and DSI dimmable drivers and transformers.

  • Multiple protocols supported – Compatible with a range of fittings and devices including DSI drivers, DSI electronic low voltage transformers, DALI drivers (broadcast mode only), DALI electronic low voltage transformers (broadcast mode only), 1-10 V drivers and other switched loads.
  • Service override switch – Incorporated as standard, forces all channels to 100%.
  • Inbuilt diagnostic functionality – Features Device Online/Offline status indication.
  • Options available – Including an additional RS-485 DyNet/DMX512 port or earth leakage and overload protection on each channel.

Additional information

Dimensions 458 × 253 × 140 mm

Philips Dynalite
