Philips Dynalite Relay Controller 8Ch SPDT (DDRC810DT-GL)

Philips Dynalite Relay Controller 8Ch SPDT (DDRC810DT-GL)
Free
  • DDRC810DT-GL

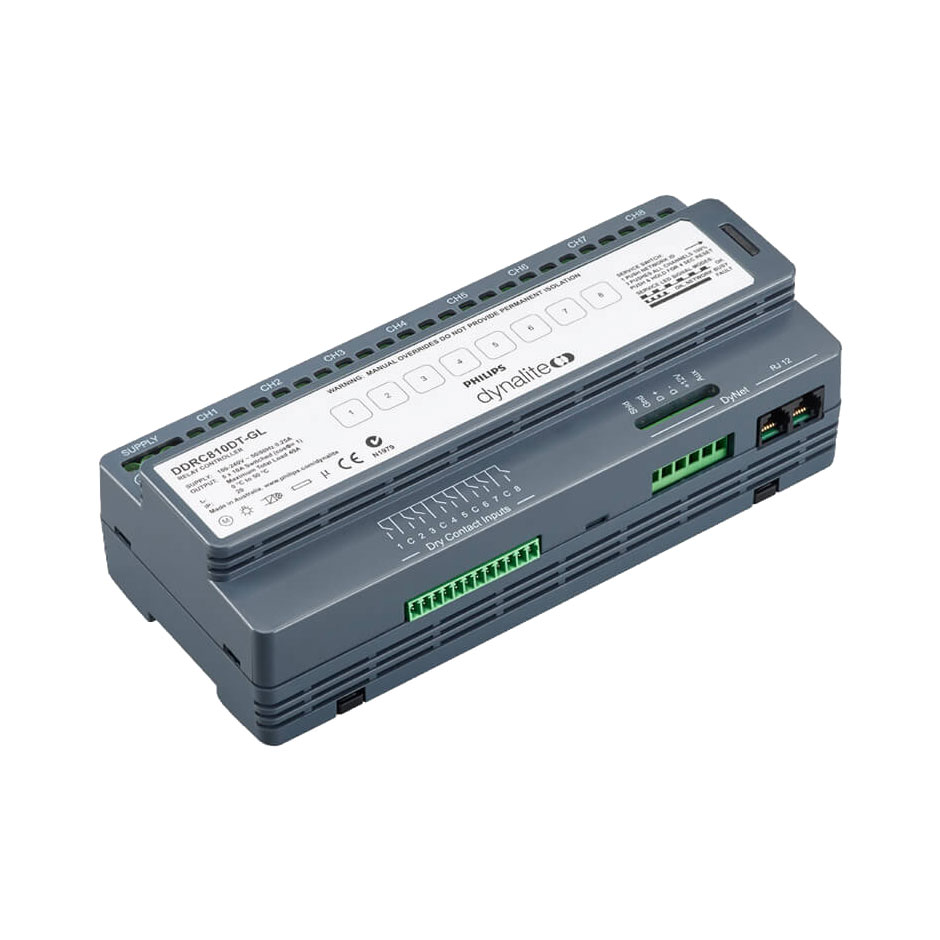

The Philips Dynalite DDRC810DT-GL is ideal for controlling bi-directional motors, such as curtain and blind motors. It is an eight channel device suitable for any switched load up to 10 A per channel, with a maximum box load of 40 A.

  • Voltage free changeover SPDT output relays – Perfect for controlling bi-directional motors.
  • Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
  • Inbuilt diagnostic functionality – Features circuit run time tracking on each channel.
  • Standalone or networked operation – Can operate as a discrete standalone unit, or as part of an integrated control system when connected to the DyNet network.
  • Dry contact inputs – The unit receives instructions from voltage-free button presses.

Additional Information

Dimensions215 × 93 × 64 mm
Manufacturer

Philips Dynalite

Channels

8
