Philips Dynalite Leading Edge Dimmer Controller (DLE220)

Philips Dynalite Leading Edge Dimmer Controller (DLE220)

This product has been discontinued. Reach out to our friendly team to discuss great alternatives to this item.

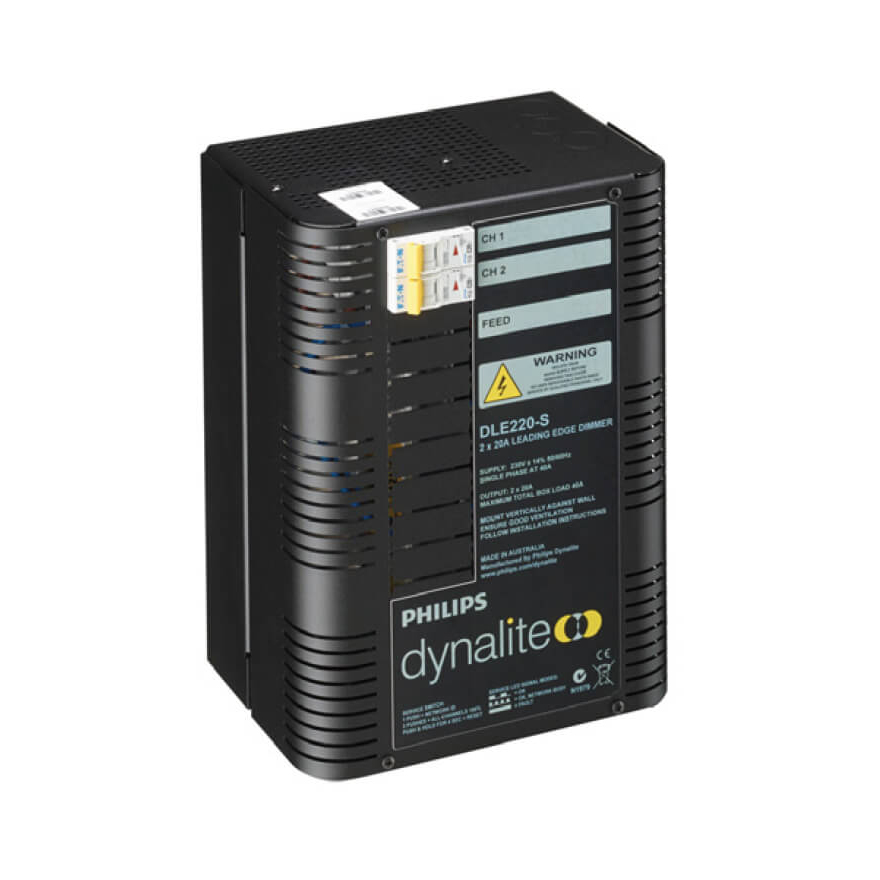

The Philips Dynalite DLE220 is a two channel leading edge dimmer controller, with a maximum load of 20 A per channel. It is suitable for use with incandescent, neon and selected fluorescent light sources, as well as iron core and leading edge dimmable electronic transformers.

  • Large load capability – Complements multichannel dimmers by providing extra channels where additional capacity is required.
  • Reliable control – Suitable for applications where lamp life is critical, such as where lamp replacement is difficult or expensive.
  • Interference suppression – Iron powder core toroidal choke lessens effects of interference from other equipment, such as transformers.
  • Naturally ventilated – Requires no forced cooling or maintenance.
  • Soft start and voltage regulation technologies – Protects lamps from over voltage and dramatically improves lamp life, reducing maintenance costs.
  • Diagnostic functionality – Device Online/ Offline status reporting.
  • User controls – Incorporates service override switch – all channels to 100% and a diagnostic LED.
  • Options available – Including an additional RS-485 DyNet/DMX512 port, circuit breaker trip reporting or neutral disconnect breakers.

Additional information
