Xtylos

Xtylos

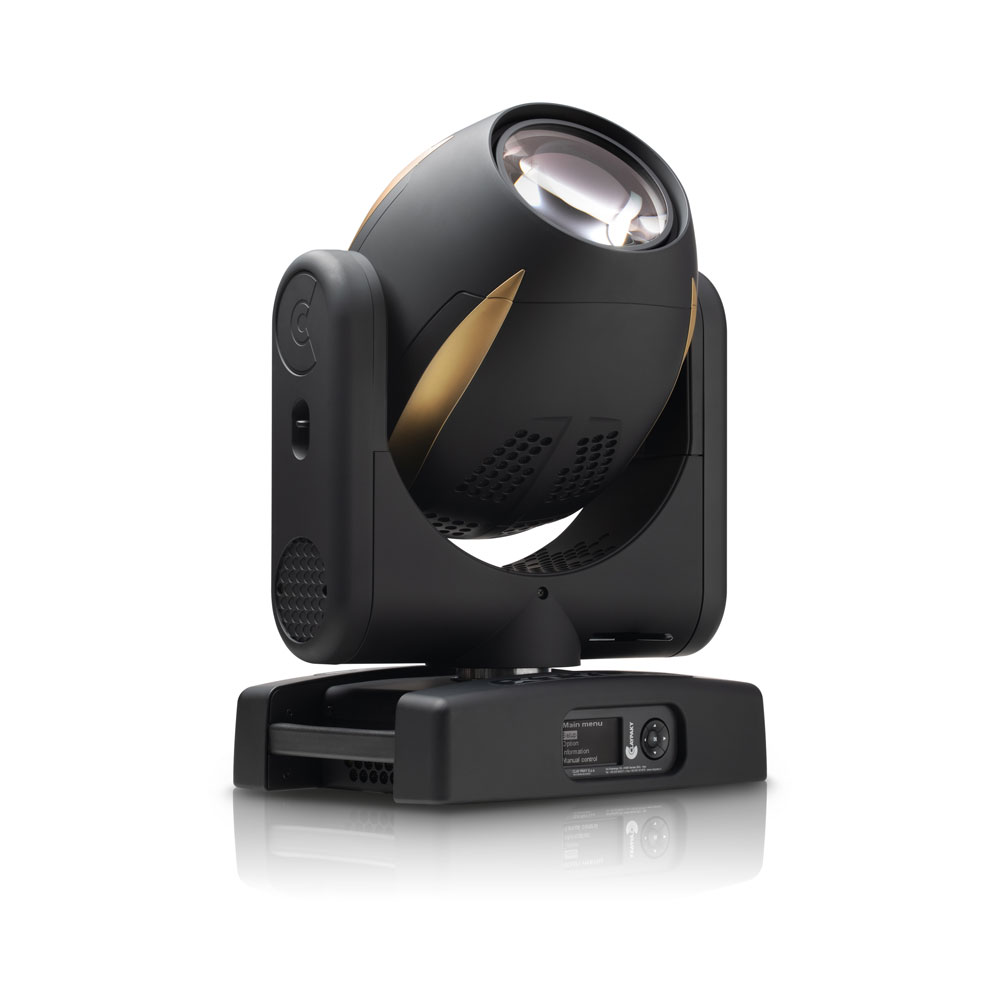

The Xtylos is a compact beam moving light with unique optical and chromatic characteristics, making use of a tailor-made RGB laser source (Patent Application filed). This laser source, lasting for 10,000 hours, is enclosed in a reliable, safe and fully sealed module and it is the powerful engine of an incredible array of colors: in contrast to the subtractive mixing used with discharge lamps, colored light beams are as bright as a white light beam!

The range of effects features two gobo wheels – with 7 rotating gobos and 12 fixed gobo slots – a wheel with 3 prisms, and a sixteen facet prism on a dedicated channel which can be overlapped with the prism wheel. The beam aperture can be steered in the range 1°-7° and it can be decreased further to 0.5°.

The Xtylos is definitely the most dynamic light on the market. It is the first moving head light with a laser light source, and this opens up new, surprising prospects for the development of the entire entertainment lighting world.

  • Light Source: Tailor-made laser engine, enclosed in a sealed module
  • Long lasting light source (10,000 hours) with minimal decay
  • Solid, flat field, saturated, ultraconcentrated light beam without any visible hotspots.
  • Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
  • RGB additive color mixing, with exclusive Turbo-colors
  • Unequalled color consistency both across different fixtures and during lifetime.
  • Exclusive BLazer graphic effects
  • 7 rotating gobos
  • 12 fixed gobo slots: 5 gobos and 7 beam reducers
  • One wheel with 3 prisms and 1 soft-edge frost filter
  • Sixteen-facet prism on a dedicated channel
  • Unrivalled effect and color change speed
  • Compact housing with easy accessibility to all modules
  • Extremely fast pan-tilt movements
  • Ultra-precise 24-bit digital dimmer

Additional information

Manufacturer

Clay Paky

Documentation

Category:
