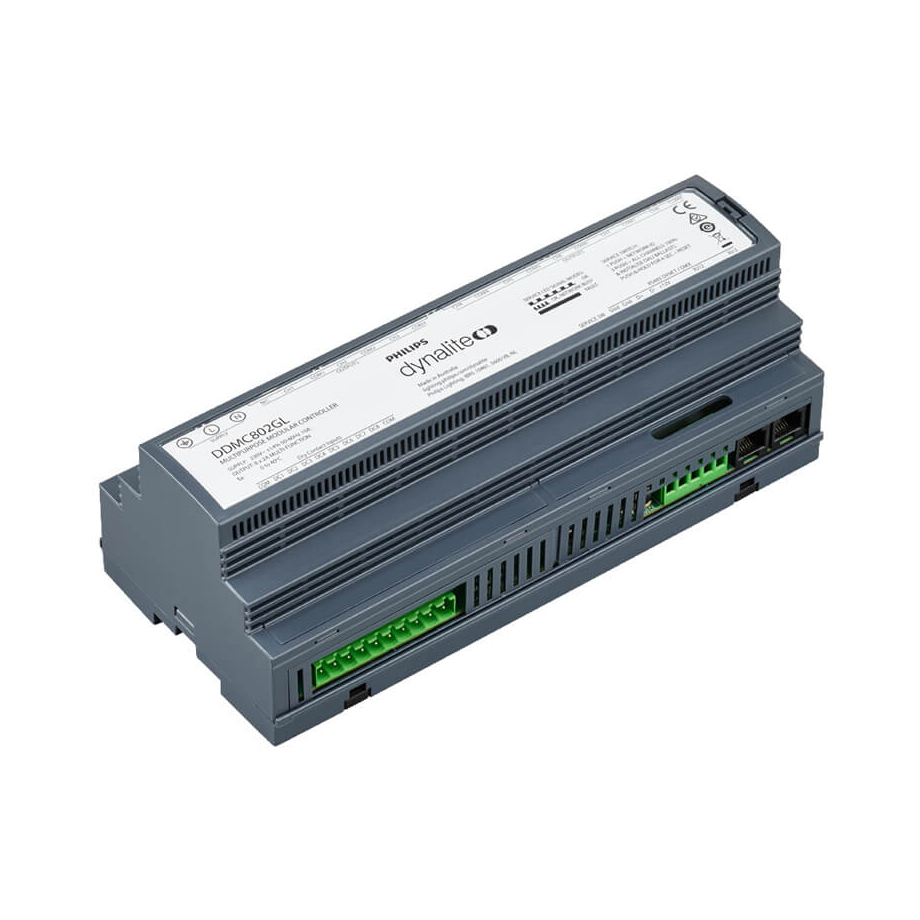

Philips Dynalite Multipurpose Modular Controller (DDMC802GL)

Philips Dynalite Multipurpose Modular Controller (DDMC802GL)

** The DDMC802GL has been discontinued, and has been replaced by the DDMC802. **

The DDMC802GL is an eight-channel mixed controller with a nominal load per channel of 2A (10A total). A variety of output modules are available to suit different types of loads and the DDMC802GL can accept up to four plug-in modules, which by their removable design also facilitate ease of servicing. Available module types include:

  • Trailing edge phase control dimmer, suitable for use with most types of dimmable electronic transformers.
  • LED dimmer, suitable for main rated dimmable LED fittings.
  • Leading edge phase control dimmer, suitable for incandescent lamps and some types of dimmable electronic transformers.
  • HF Ballast controller, suitable for controlling DALI Broadcast, 1-10V and DSI ballasts and transformers.
  • Relay module, suitable for most types of switched loads.
  • Fan control module.
  • Curtain control module.

The device is DIN-rail mountable, designed to be installed in a switchboard, optionally next to circuit breakers feeding the circuits to be controlled.

Additional information

Dimensions 211 × 94 × 75 mm
Manufacturer

Philips Dynalite
