The Clarity VX10 forms part of the LSC Clarity control package and are external hardware control platforms commonly called “Wings”. Available in 2 models, the VX Wings allow direct control of Clarity’s many features. Providing a bridge between the PC world of mouse control and the traditional dedicated lighting control console, the VX series draws on the best of both worlds.

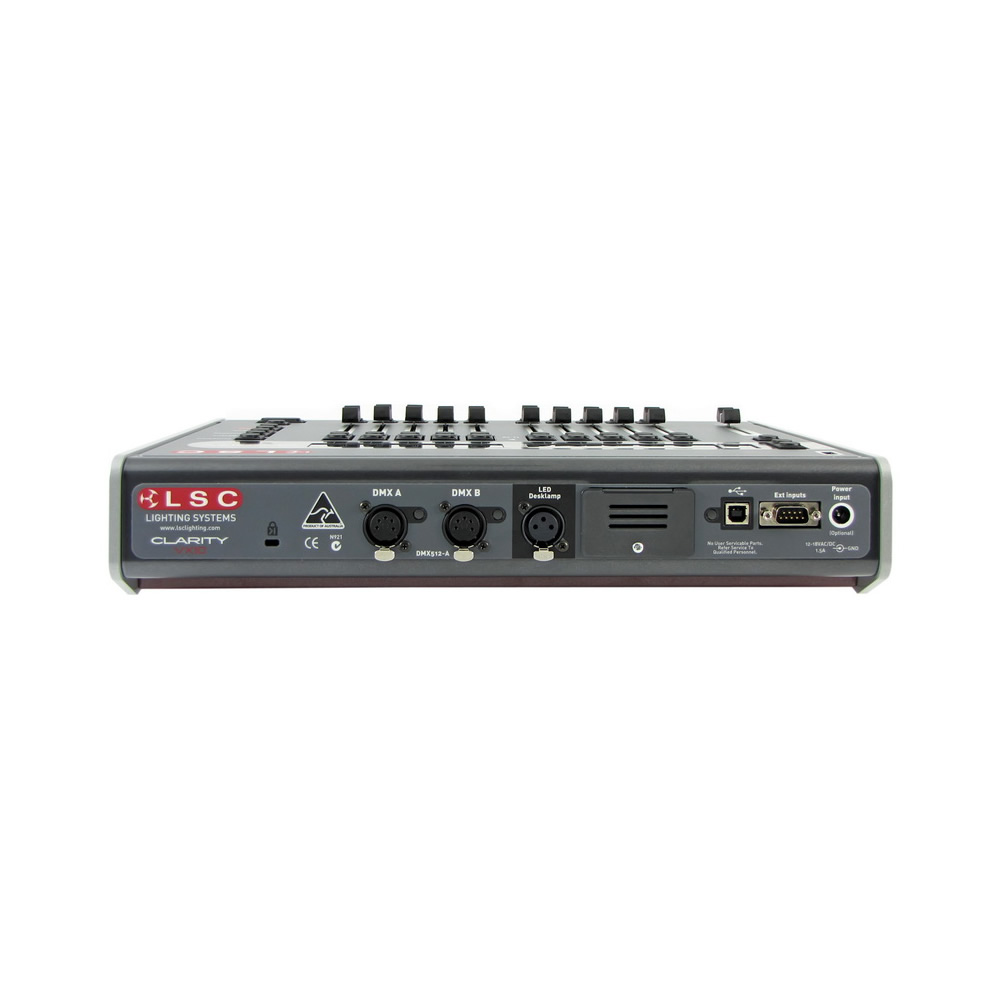

Connecting directly to the PC/Mac via a USB cable, the VX wings offer direct control of intensity and playbacks via buttons and faders. The VX wings also have inbuilt QX Nodes providing DMX512 outputs via connectors on the backpanel. There are also 6 remote dry contact trigger inputs available.

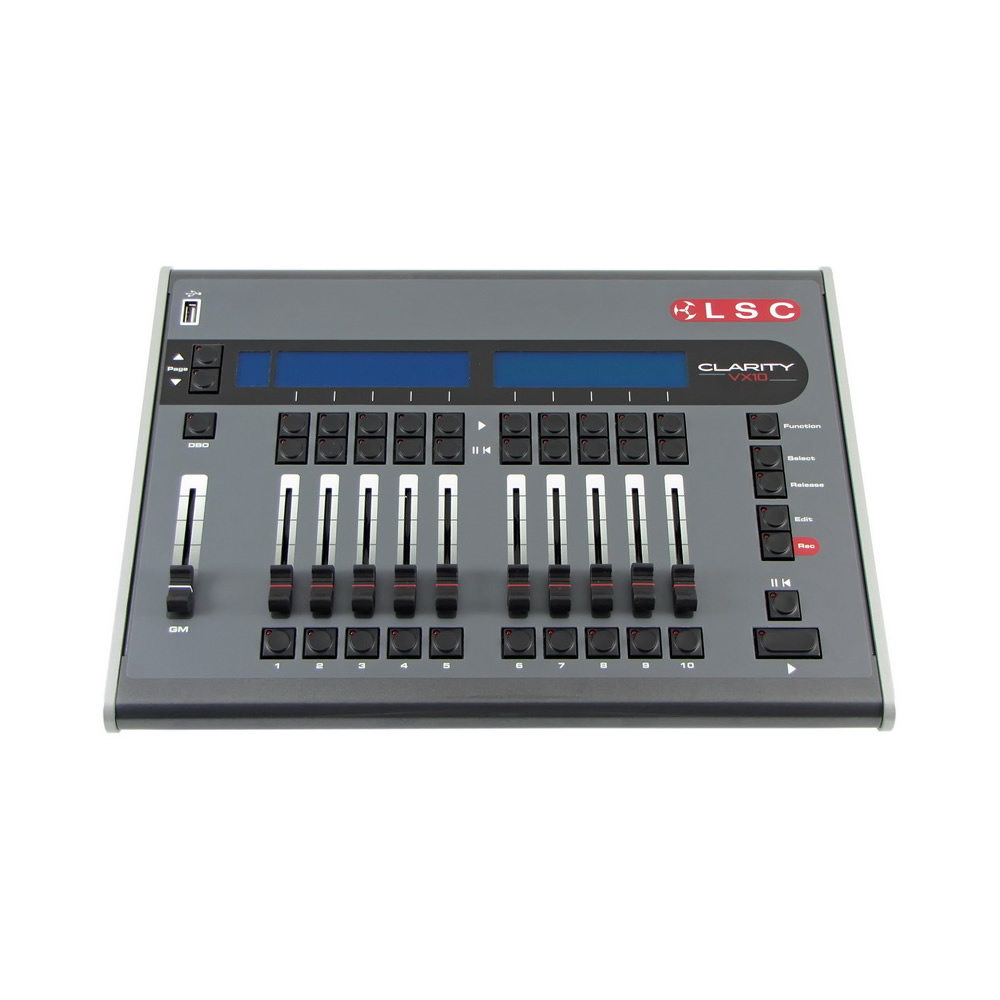

The Clarity VX10 provides ten playback each with a 60mm fader for intensity control, a Go button, Pause button and Flash button. These 10 playbacks are grouped into 99 pages giving 990 possible playbacks. Each playback has a LCD display located directly above it for labelling and direct information as to what is in the playback and what state it is in.
|Dimensions||398 x 296 x 86 mm|
