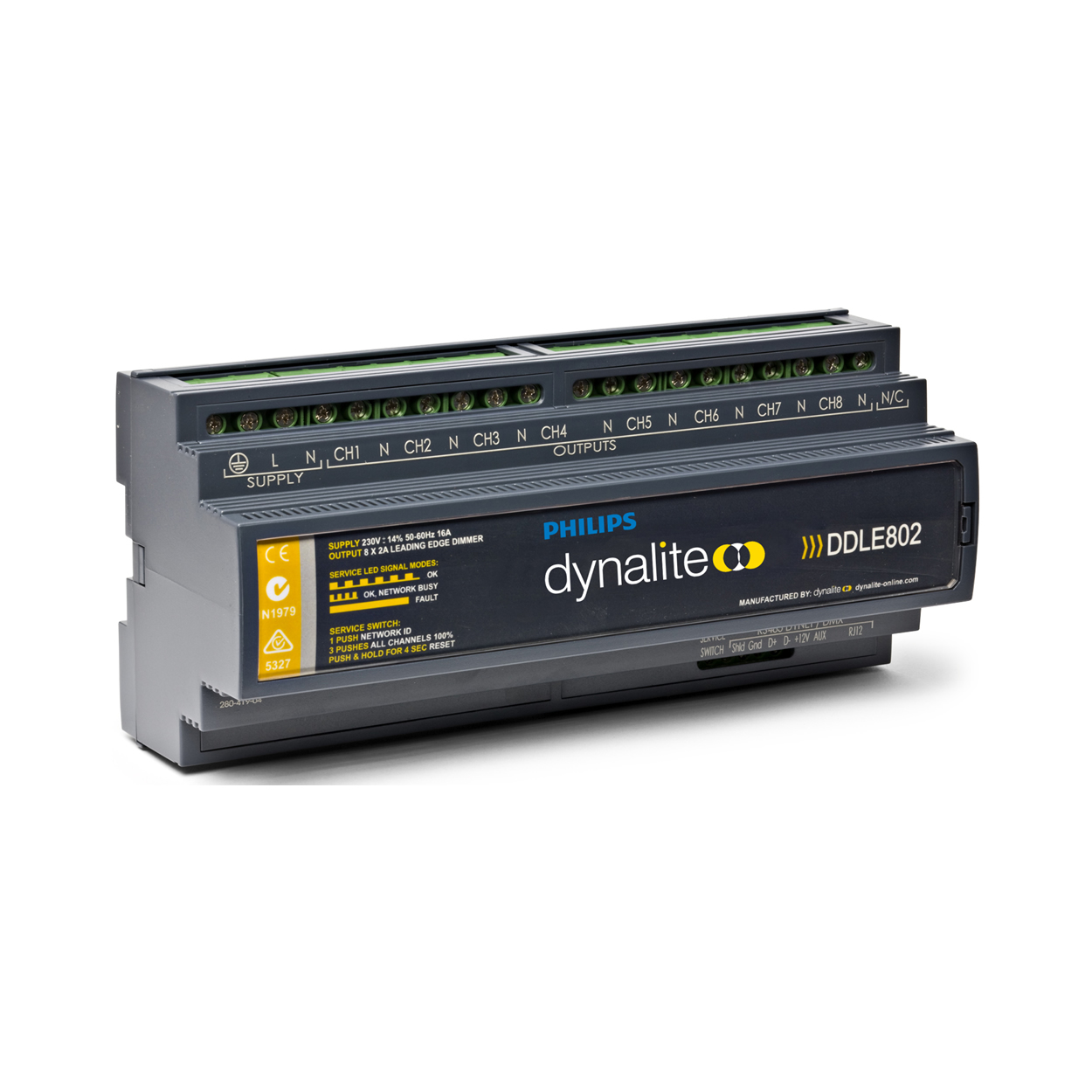

Philips Dynalite Leading Edge Dimmer Controller 8Ch (DDLE802)

Philips Dynalite Leading Edge Dimmer Controller 8Ch (DDLE802)

The DDLE802 is an eight-channel leading edge dimmer with a maximum load per channel of 2 Amps. It is suitable for use with incandescent, low voltage, neon and selected fluorescent fixtures. It is also highly recommended for use in residential and hotel applications. The DDLE802 features Philips Dynalite’s superior voltage regulation and soft start technologies, which protect low voltage lamps and dramatically increase lamp life.

The front panel of the DDLE802-MO (Manual Override) version includes a rear-lit keypad that provides status indication and local control of individual channels. It also features an LED illuminated service switch for diagnostics and local override. Adjacent to the keypad is a network socket for ease of programming. The device is DIN-rail mountable, designed to be installed in a switchboard, optionally next to circuit breakers feeding the circuits to be controlled.

Additional information

Dimensions 211 × 94 × 75 mm
Manufacturer

Philips Dynalite

Channels

8

Documentation

Reviews

There are no reviews yet.

Be the first to review “Philips Dynalite Leading Edge Dimmer Controller 8Ch (DDLE802)”

Your email address will not be published. Required fields are marked *

SKU: DDLE802 Category: Tag:
