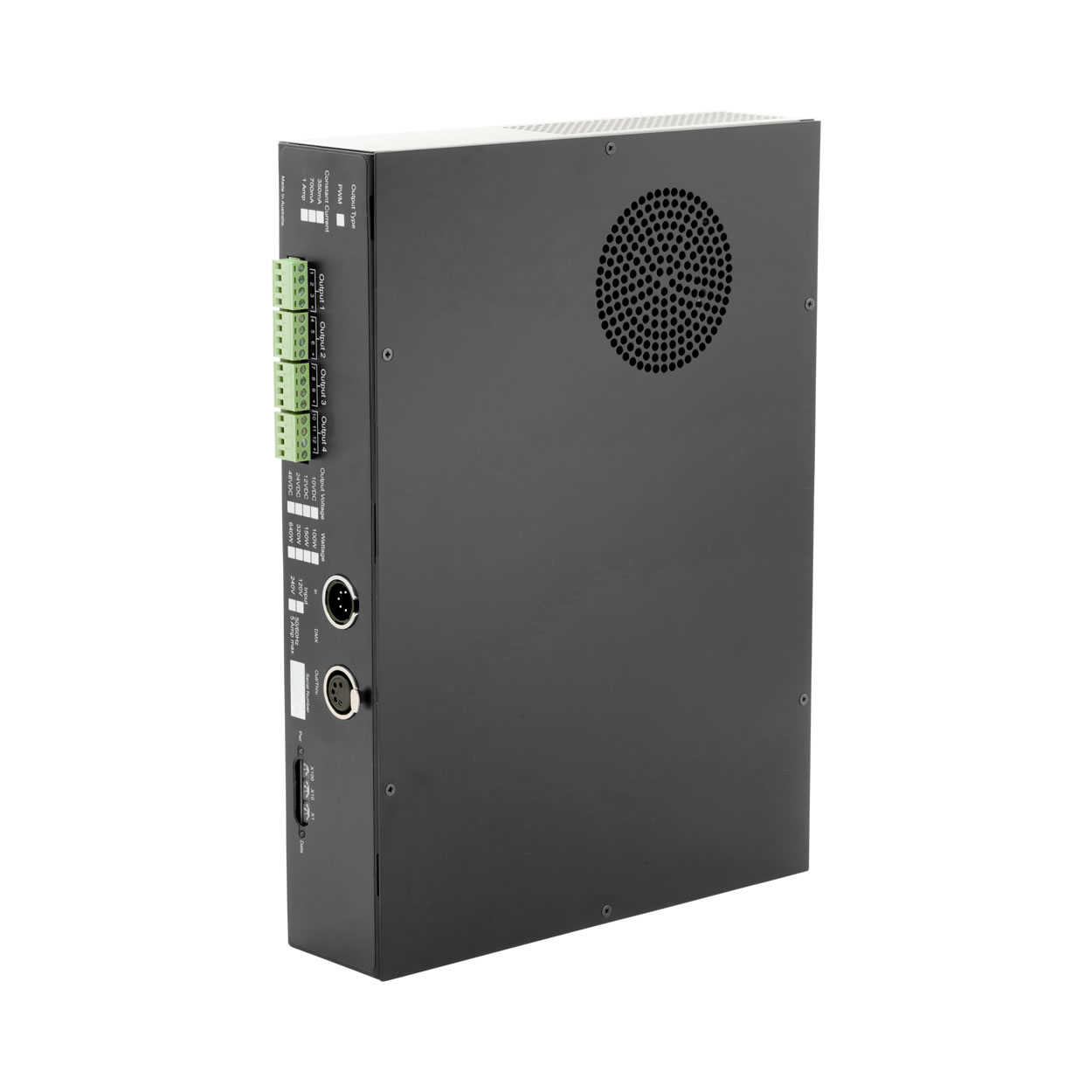

The Control 12 is a DMX/RDM controller for 12 or 24V constant voltage LEDs. With a maximum output power of 300W, the Control 12 Power LED provides four (4) RGB outputs, each with fuse protection.
Control 12 is available in 2 versions, built in power supply or external power supply. New SpaceDim high resolution and high speed technology enables smooth and full-range dimming of LEDs down to zero, simulating traditional tungsten dimming curves. This enables a more natural effect, and is perfect for all applications including architectural, theatrical, film and TV work.
Remote Device Management (RDM) is a protocol enhancement to DMX512 that allows bi-directional communications between light fixtures and lighting consoles or RDM specific software over a standard DMX line.
- Internal power supply 300VA

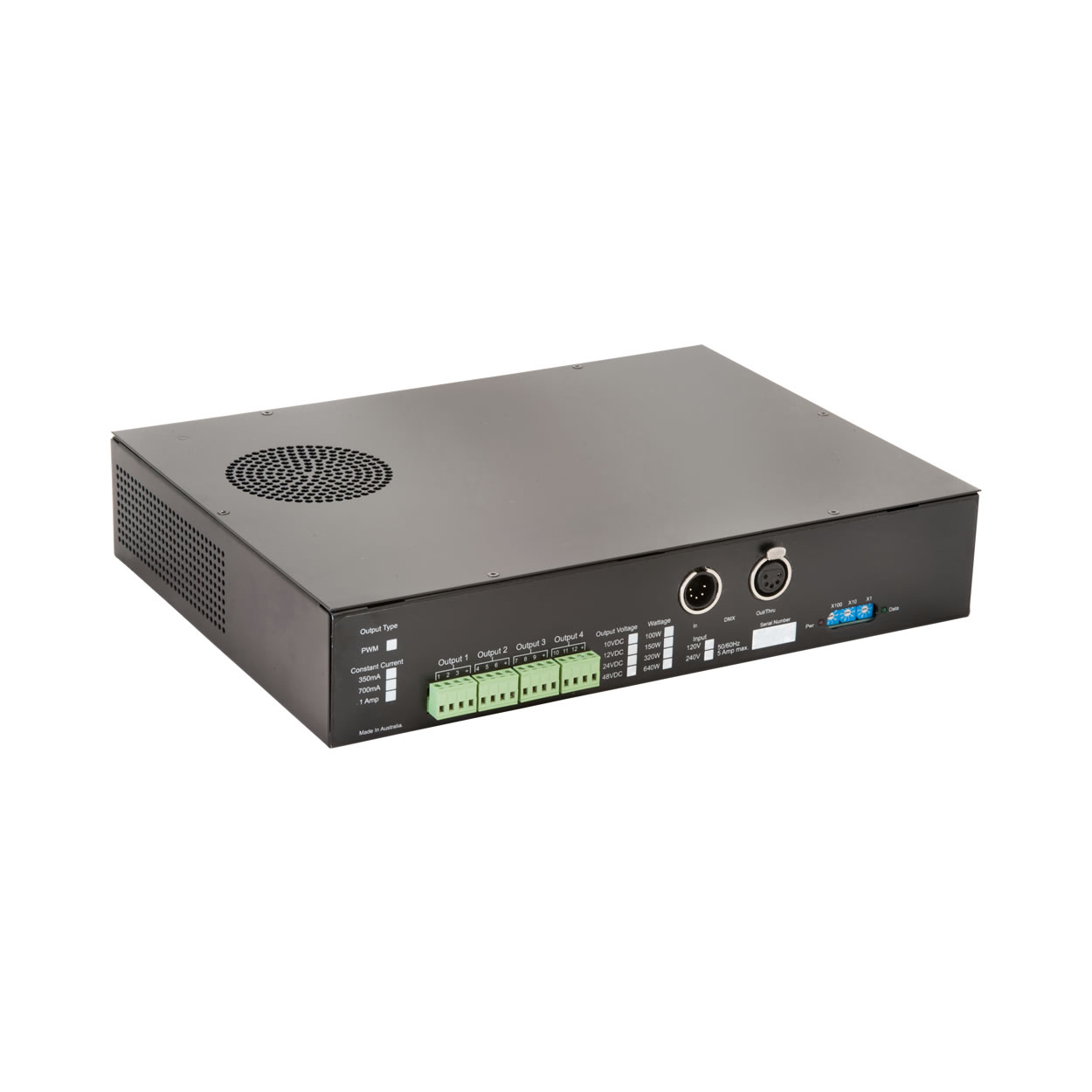

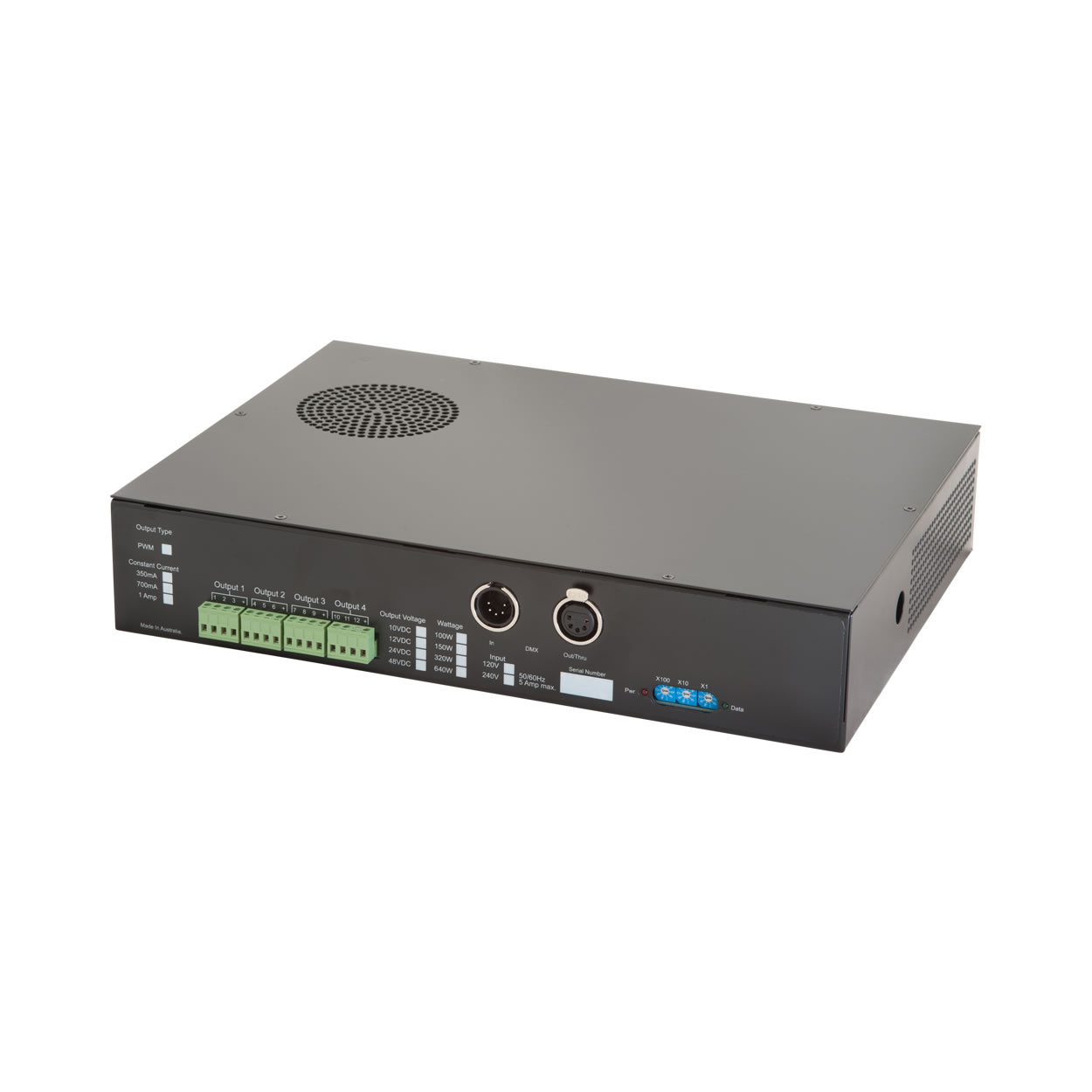

- Terminal strip input and output connectors
- 2 main indication LEDs (RED – Power ON, GREEN – DMX Receive)

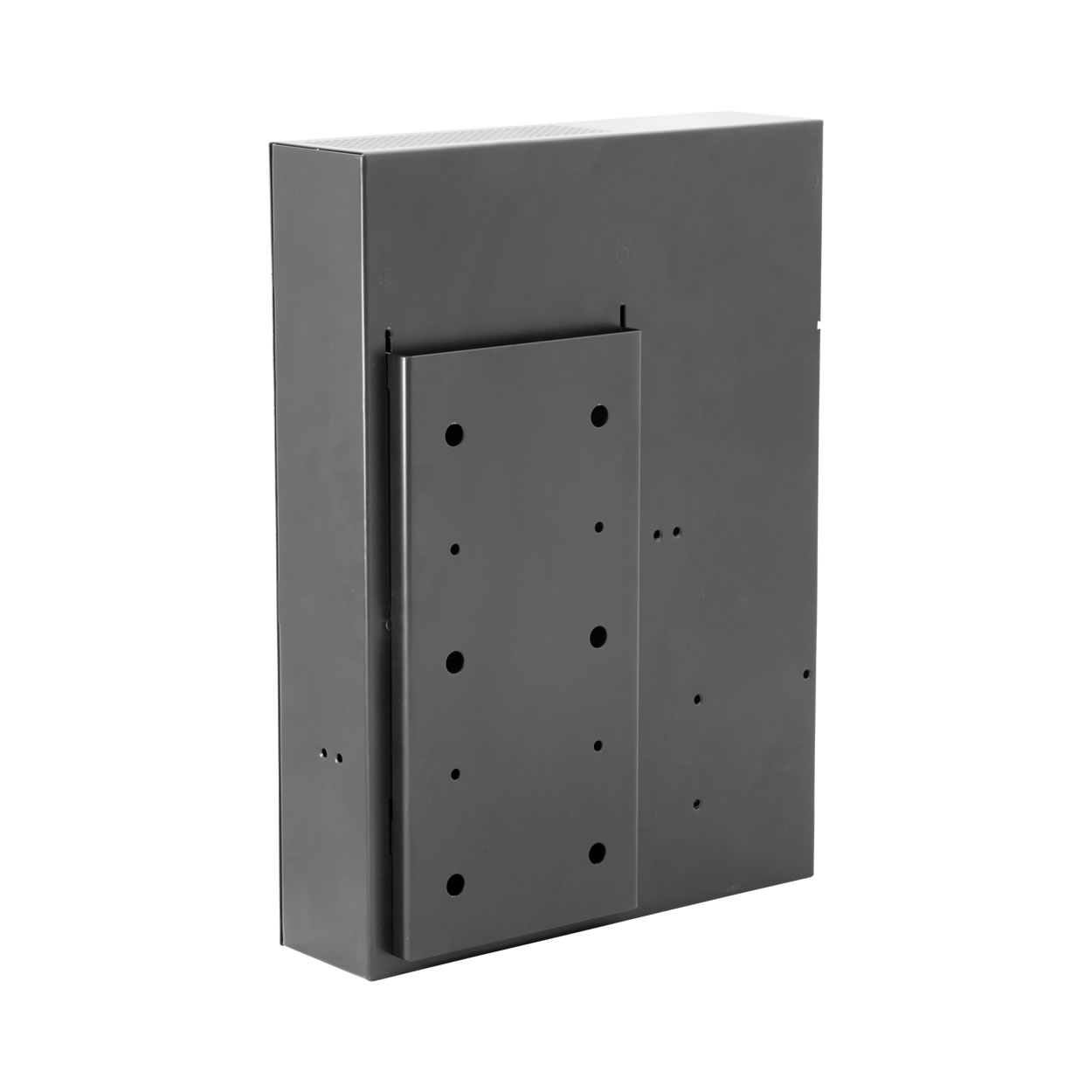

- Available in wall-mount or 19” rack-mount
- In-built test programs
