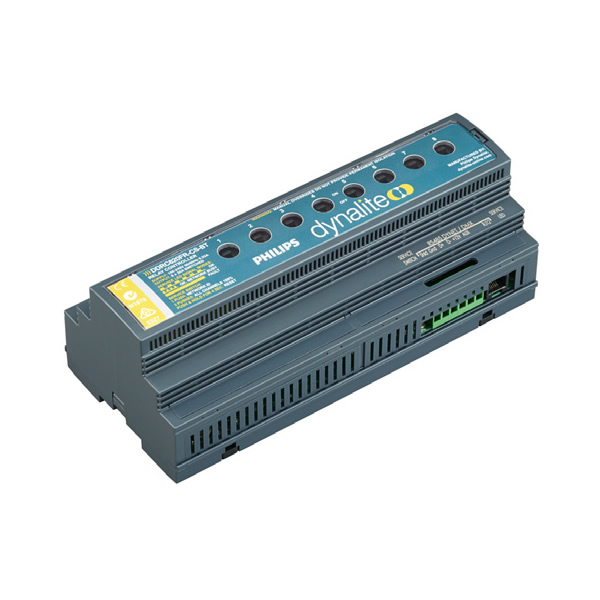

Philips Dynalite Relay Controller (8 Channel – Multiphase)

Philips Dynalite Relay Controller (8 Channel – Multiphase)

** The DDRC820FR-CS-BT has been discontinued.

The Philips Dynalite DDRC820FR-CS-BT provides control of any type of switched load. The eight channel device supports all types of switched loads up to 20A inductive.

  • Feed-through power circuit design — Electrically equivalent to an 8 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
  • Flexible mounting solution — A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
  • Inbuilt diagnostic functionality — Features circuit run time tracking on each channel and Device Online/Offline status indication.
  • Multiple wiring schemes supported — Controls Single Phase and Neutral or Three Phase and Neutral (Star) wiring configurations.
  • Hardware override — Service override switch accessible from front panel.

Additional information

Dimensions 211 × 94 × 75 mm
Manufacturer

Philips Dynalite

Channels

8

Documentation
