** The DDMC802 has been discontinued.

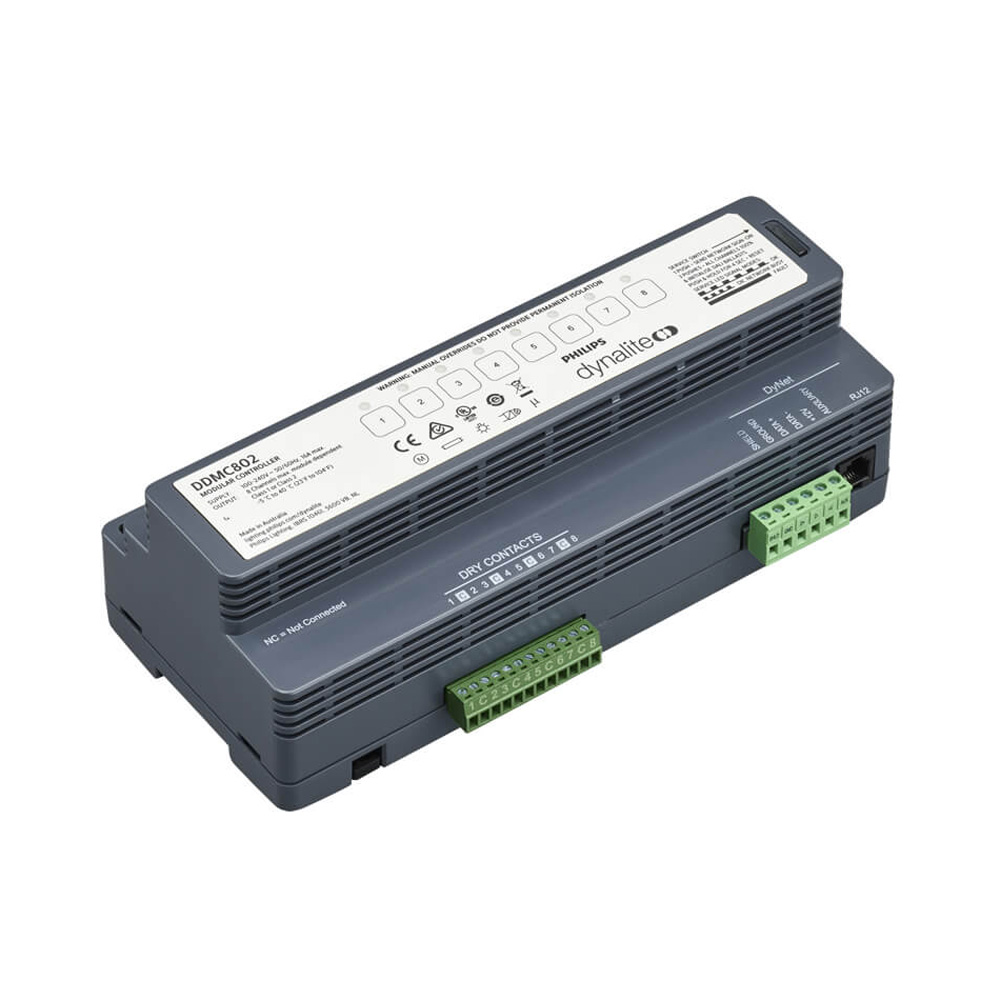

The DDMC802 is an eight-channel controller with a maximum load per channel of 2A (16A total). A variety of output modules are available to suit different types of loads and the DDMC802 can accept up to eight plug-in modules, which by their removable design also facilitate ease of servicing. Available module types include:

  • Trailing edge phase control dimmer, suitable for use with most types of dimmable electronic transformers.
  • Leading edge phase control dimmer, suitable for incandescent lamps and some types of dimmable electronic transformers.
  • HF Ballast controller, suitable for controlling 1-10V and digital ballasts and transformers (a relay module should be paired with the HF ballast module when controlling 1-10V ballasts).
  • Relay module, suitable for most types of switched loads.
  • Fan control module.
  • Curtain control module.

The device is DIN-rail mountable, designed to be installed in a switchboard, optionally next to circuit breakers feeding the circuits to be controlled.

Additional Information

Dimensions211 x 94 x 75 mm
Manufacturer

Philips Dynalite
