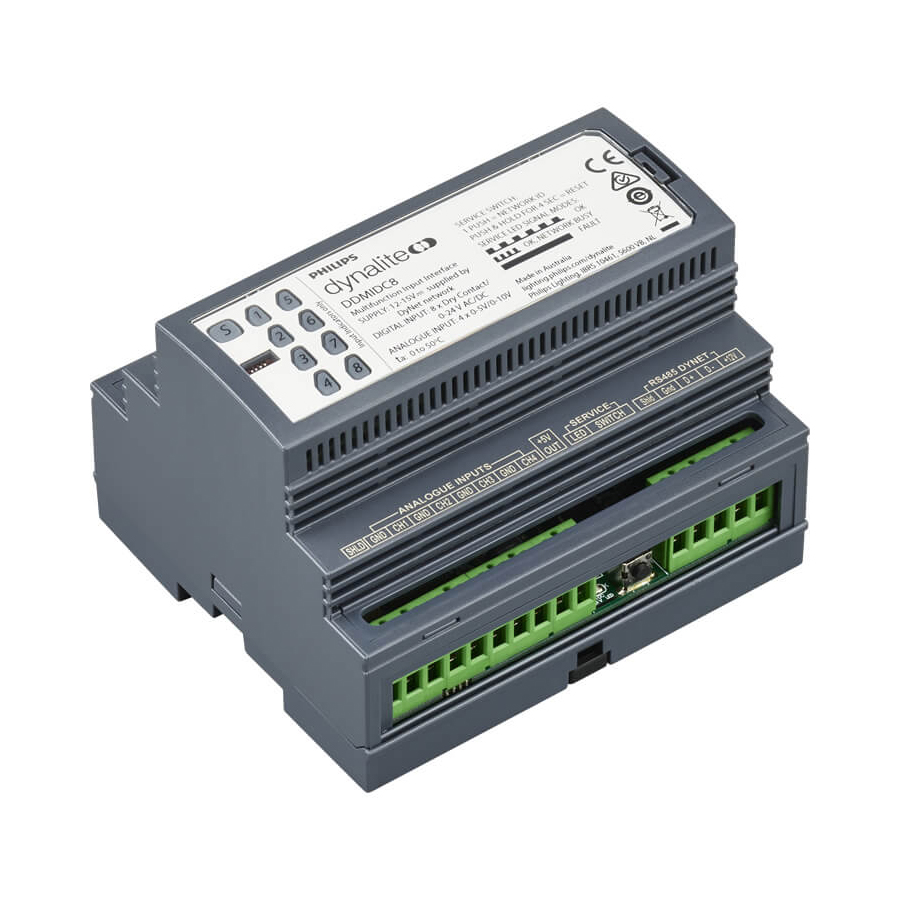

Philips Dynalite Low Level Input Integrator (DDMIDC8)

Philips Dynalite Low Level Input Integrator (DDMIDC8)

The DDMIDC8 is designed to enable cost-effective input integration to the Philips Dynalite control system from third-party systems such as Security, HVAC and BMS. The interface incorporates a Programmable Logic Controller that can process comprehensive conditional and sequential logic and arithmetic functions. Eight digital inputs are provided, each of which can be individually configured as a dry contact input or a 0-24V AC/DC input. Each input has an LED indicator to provide visual status indication, and all inputs are individually optically isolated for high noise immunity. In addition to the digital inputs, four 0-5V/0-10V (software selectable) analogue inputs are provided. The DDMIDC8 is housed in a six unit wide DIN enclosure for installation into switchboards and also has internal fixing points that allow the device to be fixed to a surface without the use of DIN-rail. The device is powered from the DyNet network and does not require a separate mains voltage supply.

Additional information

Dimensions 105 × 95 × 75 mm
Manufacturer

Philips Dynalite
