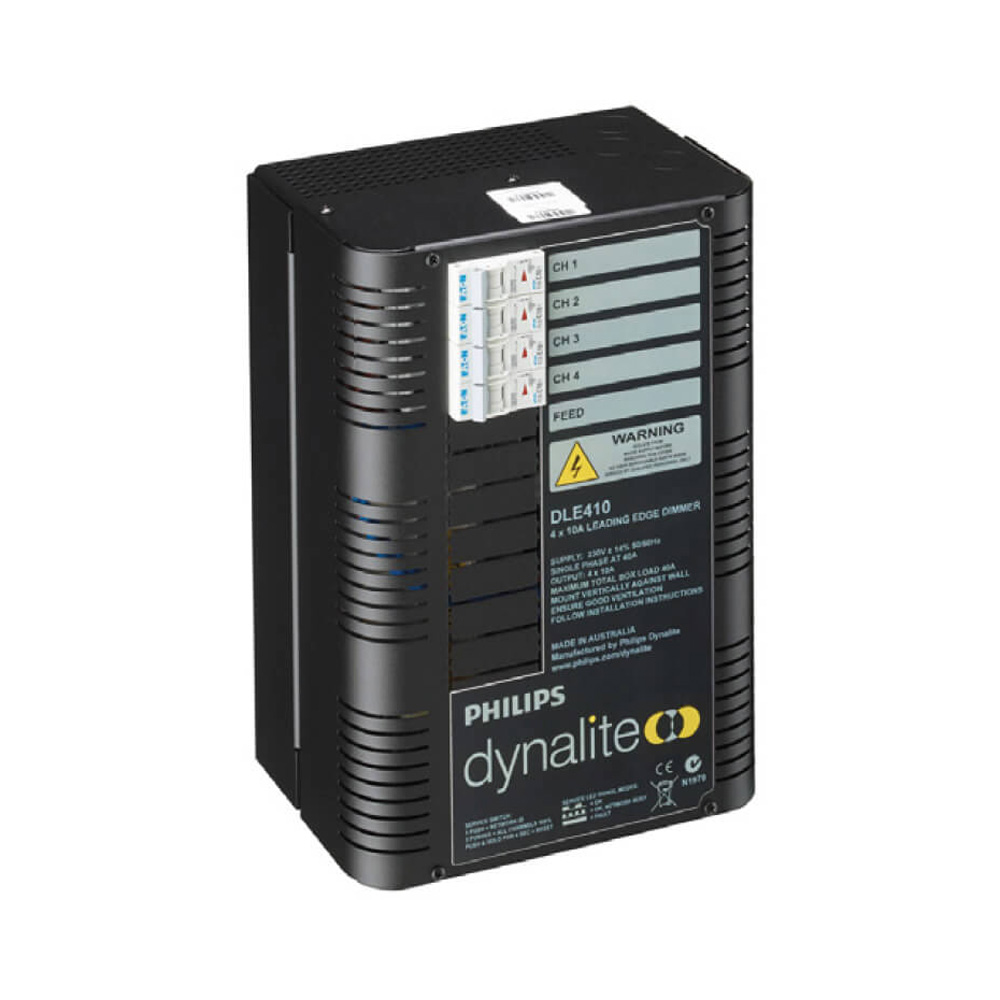

Philips Dynalite Leading Edge Dimmer Controller 4Ch (DLE410)

Philips Dynalite Leading Edge Dimmer Controller 4Ch (DLE410)

The DLE410 is a four channel leading edge dimmer controller, with a maximum load per channel of 10 A. It is suitable for use with incandescent, neon and selected fluorescent light sources, as well as iron core and leading edge electronic transformers.

  • Ideal for applications where multiple user settings are required – Provides robust control in situations where a small number of lighting circuits require control.
  • Interference suppression – Iron powder core toroidal choke lessens effects of interference from other equipment, such as transformers.
  • Naturally ventilated – Requires no forced cooling or maintenance.
  • Soft start and voltage regulation technologies – Protects lamps from over voltage and dramatically improves lamp life, reducing maintenance costs.
  • Diagnostic functionality – Device Online/ Offline status reporting.
  • User controls – Incorporates service override switch – all channels to 100%, a diagnostic LED and hardware bypass switches for each channel.
  • Options available – Including an additional RS-485 DyNet/DMX512 port, circuit breaker trip reporting, double pole circuit breakers or earth leakage and overload protection on each channel.

Additional information

Dimensions 340 × 212 × 174 mm
Manufacturer

Philips Dynalite

Channels

4
