Philips Dynalite Multipurpose Modular Controller (DMC2)

Philips Dynalite Multipurpose Modular Controller (DMC2)
Free
  • DMC2

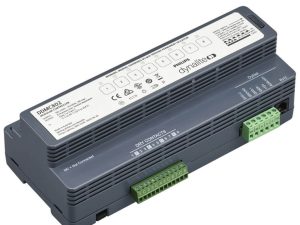

The Philips Dynalite DMC2 provides multichannel control via two interchangeable modules. The device is available with a variety of control modules to handle various load types and capacities. The DMC2 is available in CE and UL certified variants.

  • Single controller solution – Control a multitude of load types from one device, suited to any segment requiring lighting or relay control.
  • Phase-cut dimmer module – Selectable per channel for leading or trailing edge output. Compatible with most dimming loads.
  • Signal dimming module – Suitable for controlling 1-10V, DSI and DALI broadcast drivers. Built-in relays remove power when channel level is at 0%.
  • Relay control module – Suitable for controlling most types of switched loads.

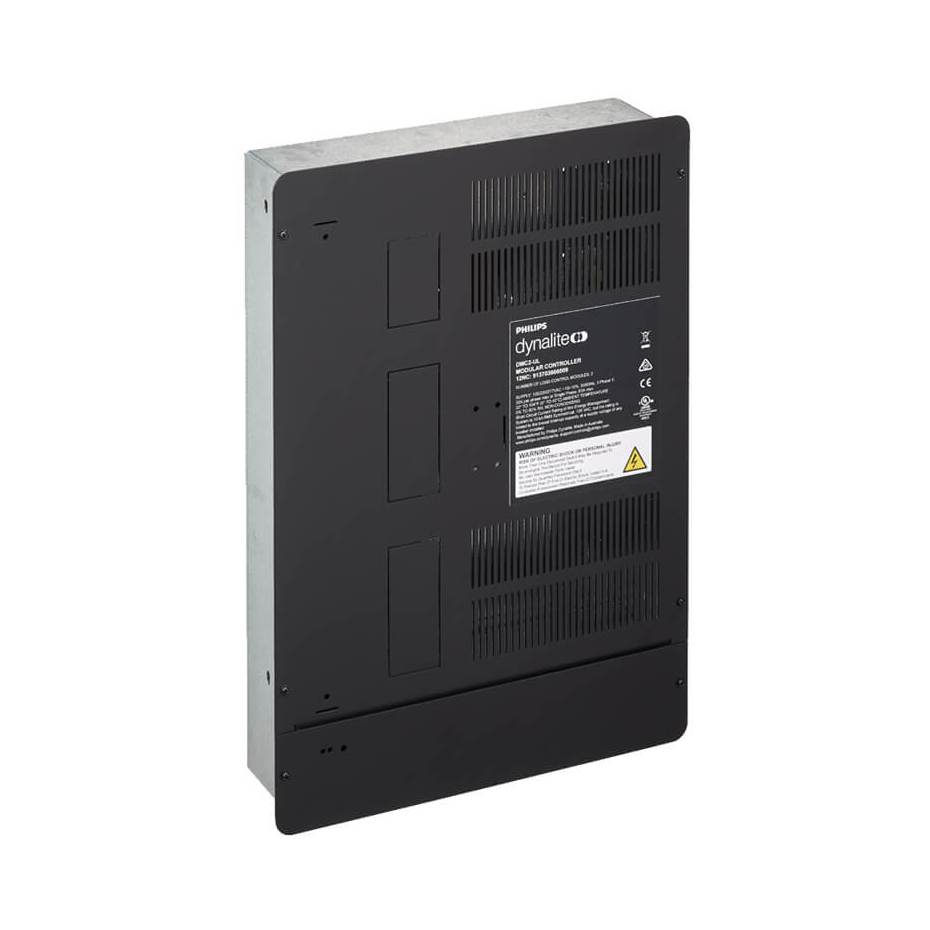

  • Flexible mounting solution – Surface or recess mountable enclosure.
  • Passive cooling – Fanless design reduces noise, power consumption and maintenance costs.

Additional Information

Dimensions540 x 380 x 103 mm
Manufacturer

Philips Dynalite

Documentation

SKU: DMC2 Category:
