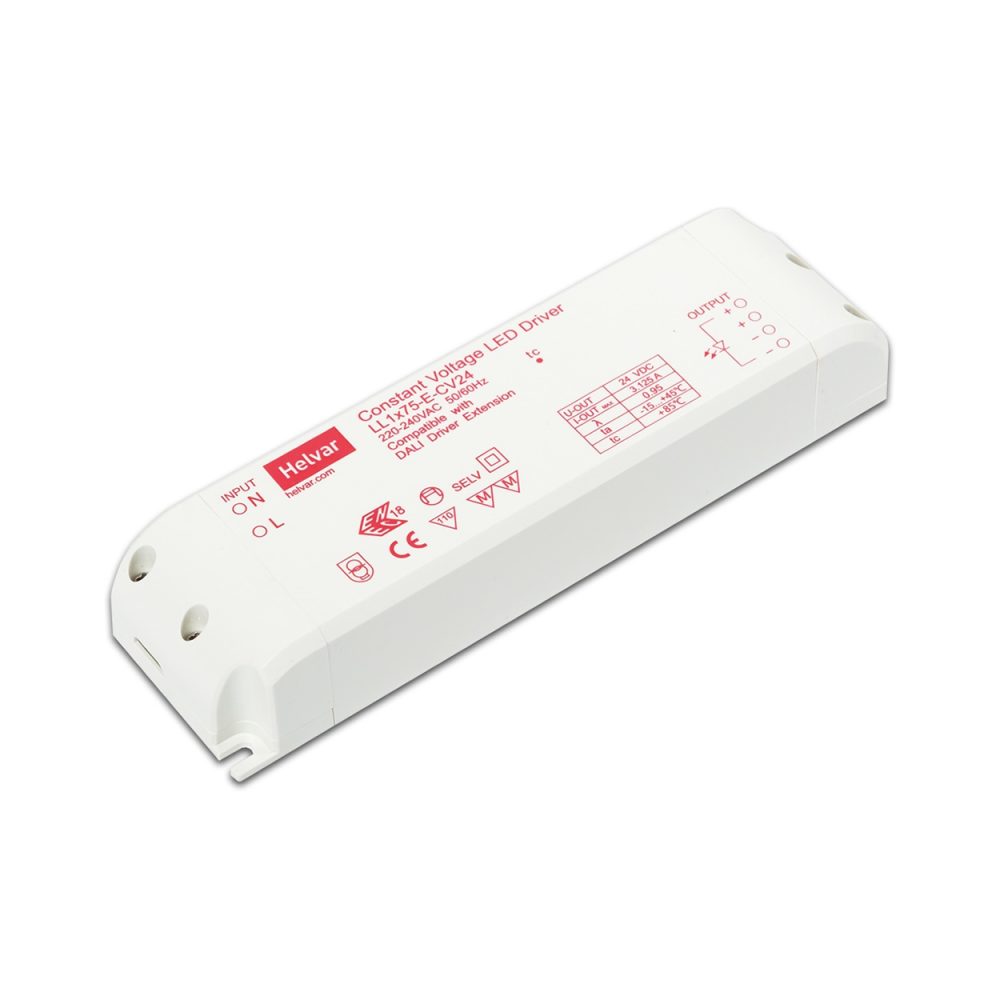

Helvar Constant Voltage LED Driver 75W (LL1x75-E-CV24)

Helvar Constant Voltage LED Driver 75W (LL1x75-E-CV24)

The Helvar LL1x75-E-CV24 is a 75W Constant Voltage LED driver, with SELV protection for safety and flexibility in luminaries.

  • Open & short circuit protection
  • Over voltage protection
  • 24 V Constant voltage output
  • Maximum 75 W load
  • High efficiency 0.88
  • Suitable for Class I, Class II and SELV luminaires
  • Double insulated enclosure
  • Compatible with LL1xCV-DA (for DALI dimmable installations)

Additional information

Weight 0.28 kg
Dimensions 180 × 52 × 30 mm
Manufacturer

Helvar

IP Rating

IP20

Output Voltage

24V

Max Output Power

75W

Documentation

SKU: LL1x75-E-CV24 Category: Tag:
